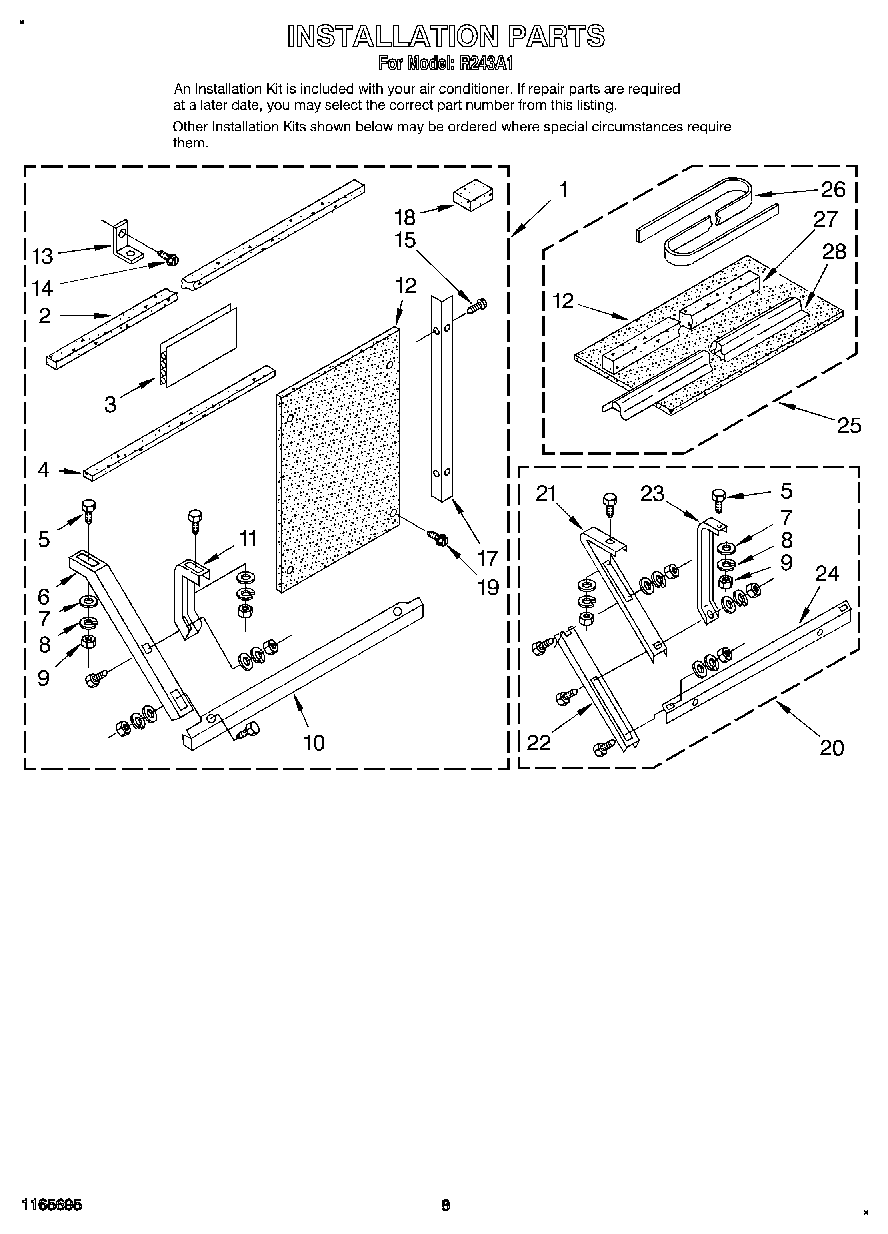

R243A1 06 – INSTALLATION

Products

Position	Product
	Instructions, Installation (Outside Support Kit
	Instructions, Installation (Standard and Wide Window Kits)
1	Kit, Standard Installation
2	Gasket, Meeting Rail
3	212643 Whirlpool Refrigerator Permagum Sealer
4	Gasket, Sash
5	Bolt, 1/4 x 3/4 (6)
6	Support, Cabinet (2)
7	WP120393 Whirlpool Washer Assembly
8	Lockwasher (6)
9	Nut, Hex (6)
10	Bracket, Support
11	Support, Retainer (2)
12	Board, Filler
13	Bracket
14	Screw (Window Lock Bracket)
15	WP308685 Whirlpool Microwave Screw
17	Angle (2)
18	Spacer, Block (4)
19	WP965173 Whirlpool Dishwasher Screw
20	Kit, Outside Support
21	Support, Cabinet (2)
22	Extension, Support (2)
23	Retainer, Cabinet (2)
24	Bracket, Support
25	Kit, Wide Window
26	Strip, Seal
27	Seal, Meeting Rail
28	Gasket, Sash (54“)
