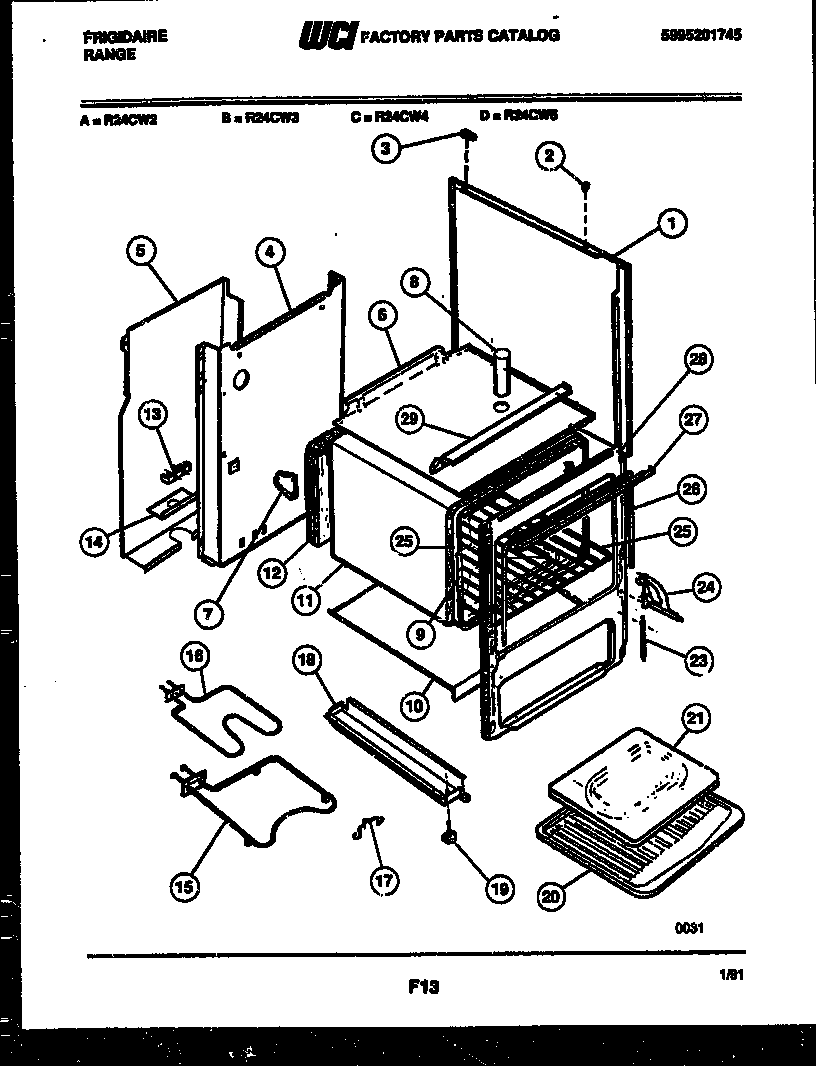

R24CW2 04 – BODY PARTS

Products

Position	Product
*80360	WCI 19100210113
*80358	PLATE=GROUND STRAP
1	BODYSIDE PANEL-WHITE (2)
2	GROMMET
3	WCI 5303016129
4	WCI 3016944
5	COVER-MAIN BACK
6	WCI 3016943
7	SUPPORT-REAR OVN (2)
8	WCI 3057064
9D	WCI 08013973
9B	WCI 08013987
9C	WCI 08013968
9	WCI 08013977
9A	WCI 08013978
10	PAN-INSULATION
11	WCI 3016946
12	WCI 3016947
13	5304409888 Frigidaire Oven Terminal Block with Hardware
14	SUPPORT-CONDULT
15	WCI 5303009292
16	WCI 5303009293
17	SUPPORT-BROIL ELMNT
18	BASE-RAIL (2)
19	LEG LEVELLER (4)
20	WCI 08011542
21	INSERT – BROILER PAN
23	WCI 08011485
24A	318348801 Frigidaire Oven Left Side Door Hinge
24	HINGE ASSY-RH
25	WCI 5303016128
26	WCI 5308013916
27	SUPPORT-CONTROL PANEL
28	WCI 08014060
28A	SHIELD SWITCH
