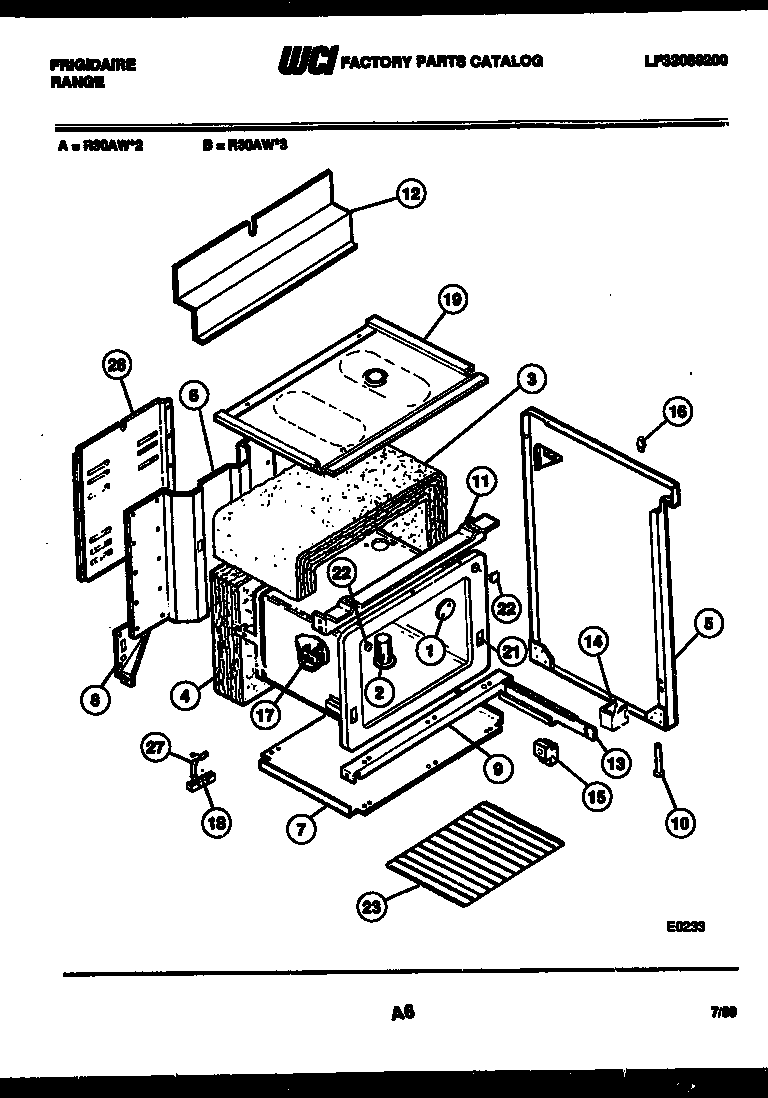

R30AF3 06 – BODY PARTS

Products

Position	Product
*22352	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	WCI 08012236
2	WCI 08012541
3	WCI 3008109
4	WCI 3008960
5A	WCI 08012532
5	WCI 08012531
6	WCI 3017575
7	WCI 3203574
8A	WCI 3017482
8	WCI 3017481
9	CHANNEL – OVEN SUPPORT LOWER
10	LEG, LEVELLER (4)
11	WCI 3200926
12	WCI 08015738
13A	WCI 08015747
13	WCI 08015746
14	WCI 08011055
15	WCI 08003103
16	BUMPER – COOKTOP (4)
17	BRKT-THERMO BULB
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI 08012542
21	OVEN LINER
22	WCI 3051784
23	316067902 Frigidaire Oven Rack
26	COVER – WIRE
27	WCI 08013146
