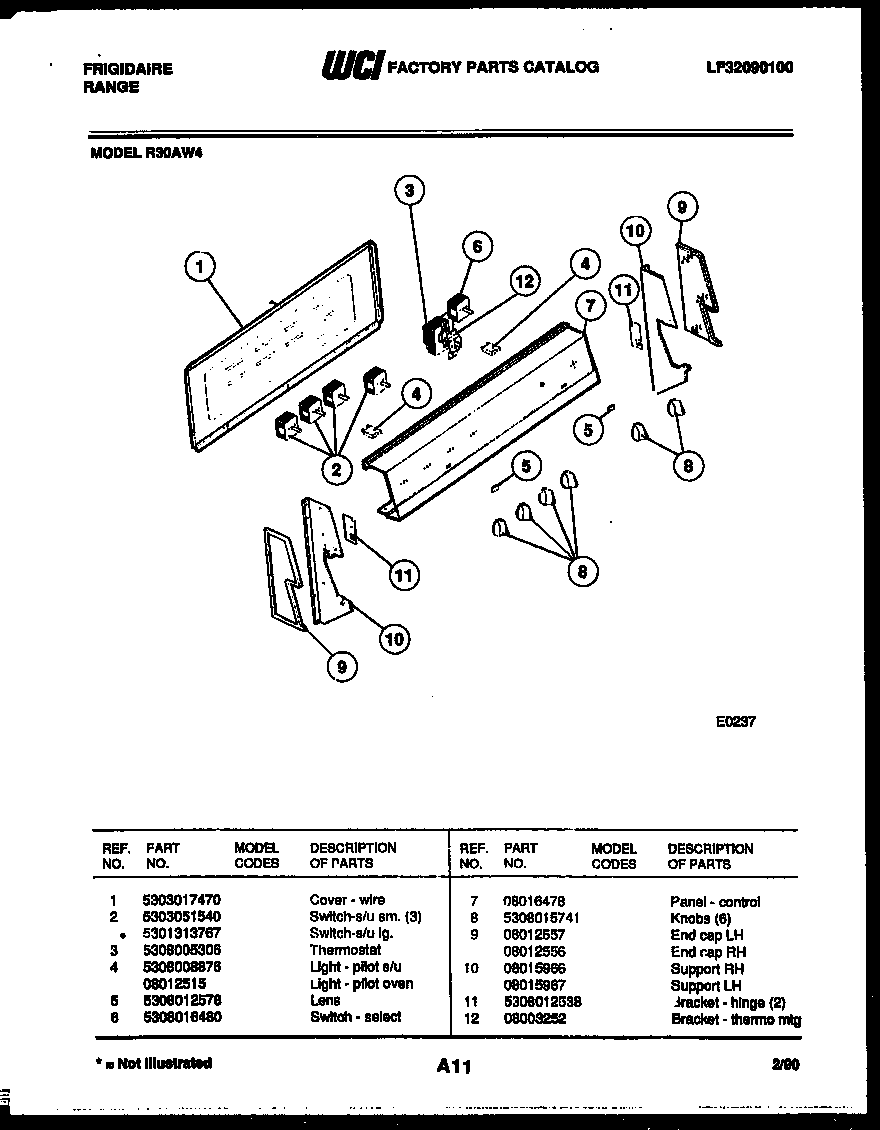

R30AH4 02 – BACKGUARD

Written by

Products

Position	Product
1	COVER, WIRE.
2A	5303935086 Frigidaire Oven Top Burner Switch Kit
3	THERMOSTAT
4	INDICATOR LIGHT, OVEN
4A	IND LITE OVEN
5	LENS-PILOT LIGHT
6	SWITCH-SELECTOR
7	WCI 08016478
8	WCI 5308015741
9	WCI 08012557
9A	WCI 08012556
10	SUPPORT RH
10A	SUPPORT LH
11	BRACKET, HINGE (2)
12	WCI 08003252
