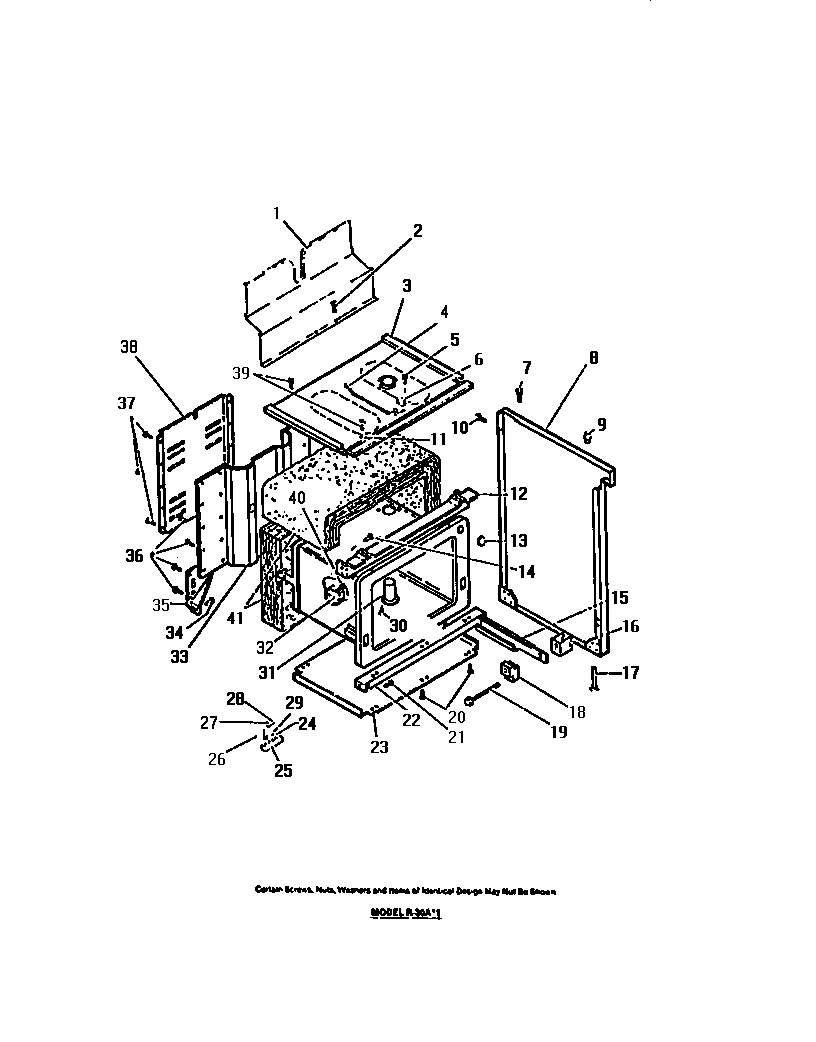

R30AL1 11 – OVEN LINER, SIDE PANELS

Products

Position	Product
1	WCI 8015738
3	WCI 8012542
4	WCI 8003079
6	WCI 8003316
7	SCREWS (2)
8A	PANEL, RH SIDE, ALMOND
8	PANEL, LH SIDE, ALMOND
9	BUMPERS (4)
11	WASHERS (2)
12	WCI 8011092
13	WCI 8002852
15	RAIL, LH DRAWER
15A	RAIL, RH DRAWER
16	SPACERS (2)
17	WCI 8005299
18	GUIDES (2)
19	SCREWS (2)
22	WCI 8002872
23	WCI 8016482
24	WASHER (6)
25	BLOCK
26	SCREWS (2)
27	SCREW, GROUND WIRE
28	WCI 8003146
29	WCI 8003148
30	SCREWS (2)
31	WCI 8012541
32	WCI 8002854
33	WCI 8015749
35A	GUSSETS, RH
35	GUSSETS, LH
38	WCI 8015750
39	SCREWS (2)
40	SCREW
