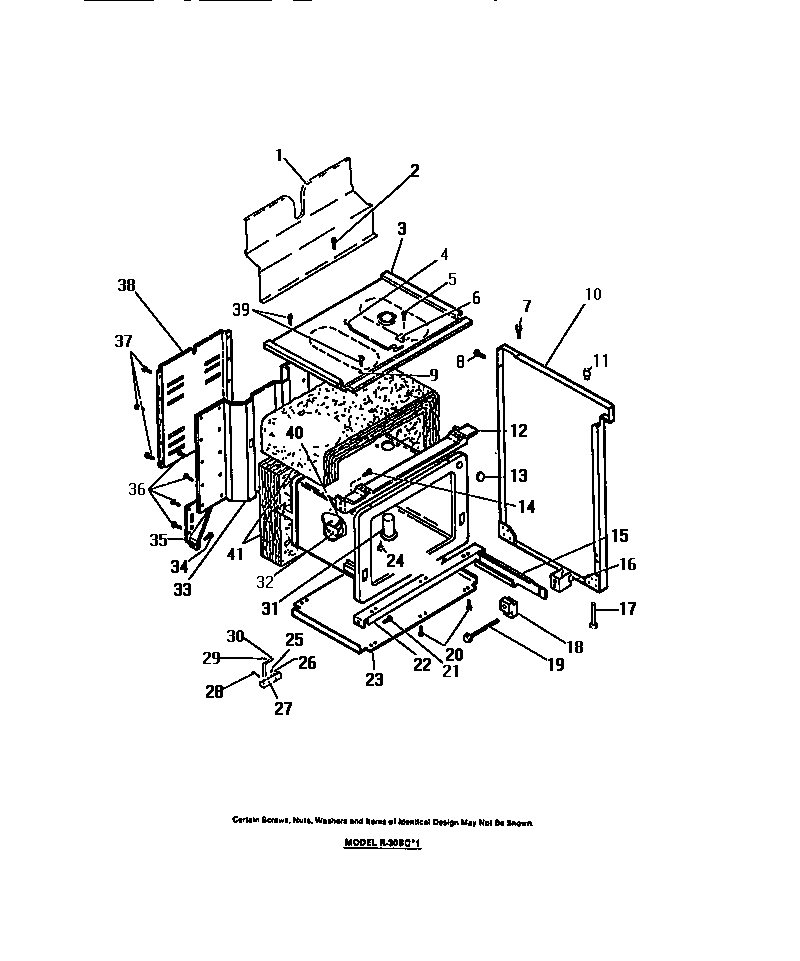

R30BCL1 14 – OVEN LINER, SIDE PANELS

Products

PositionProduct
1WCI 8015738
3WCI 8012542
4WCI 8003079
6WCI 8003316
7SCREWS (2)
9WASHERS (2)
10APANEL, LH SIDE, ALMOND
10PANEL, RH SIDE, ALMOND
11BUMPERS (4)
12WCI 8011092
13WCI 8002852
15ARAIL, LH DRAWER
15RAIL, RH DRAWER
16SPACERS (2)
17WCI 8005299
18GUIDES (2)
19SCREWS (2)
22WCI 8002872
23WCI 8016482
24SCREWS (2)
25WCI 8003148
26WASHER (6)
27BLOCK
28SCREWS (2)
29SCREW, GROUND WIRE
30WCI 8003146
31WCI 8012541
32WCI 8002854
33WCI 8015749
35GUSSETS, RH
35AGUSSETS, LH
38WCI 8015750
39SCREWS (2)
40SCREW
