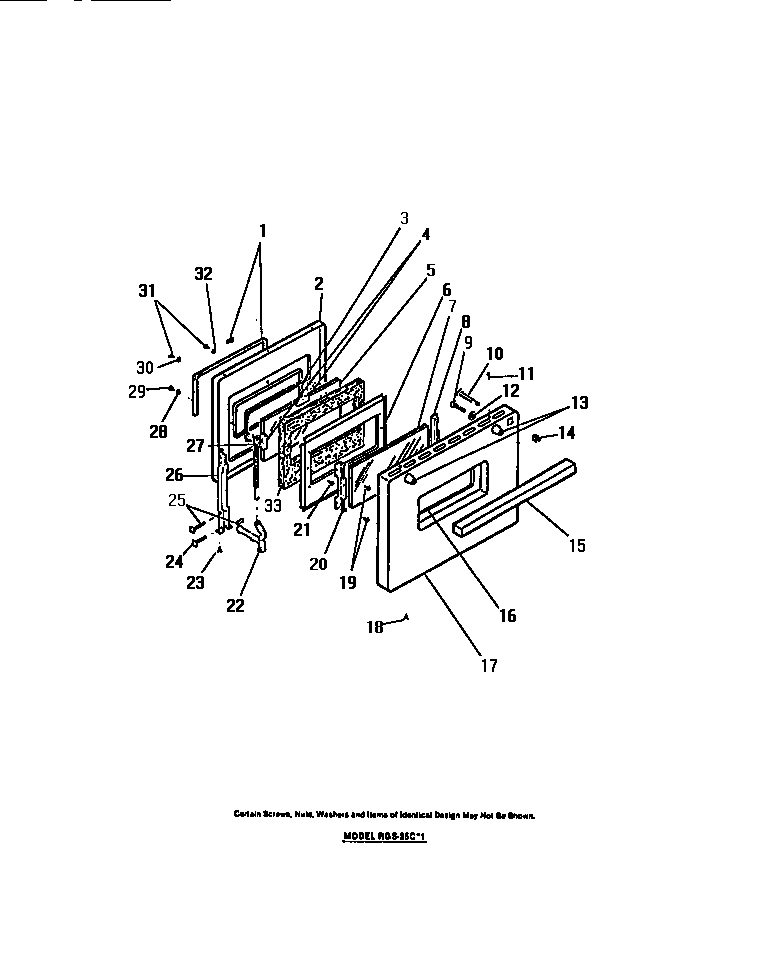

R30BCW1 09 – OVEN DOOR PANELS

Products

PositionProduct
1WCI 8003268
2WCI 8012517
3WCI 8011093
4RETAINER
5GLASS, INNER
6WCI 8011080
7WCI 8011083
9SCREWS (2)
10WCI 8003263
12WASHERS (2)
13SPACERS (2)
14WCI 8003262
15HANDLE-DOOR ASSEMBLY
16WCI 8003156
17WCI 8011077
17WCI 8011073
20WCI 8011071
21SCREWS (2)
22WCI 8003183
24PINS (2)
25KIT, ROLLER (2)
26CHANNELS (2)
27SPRING
31SCREWS (2)
32WASHERS (2)
