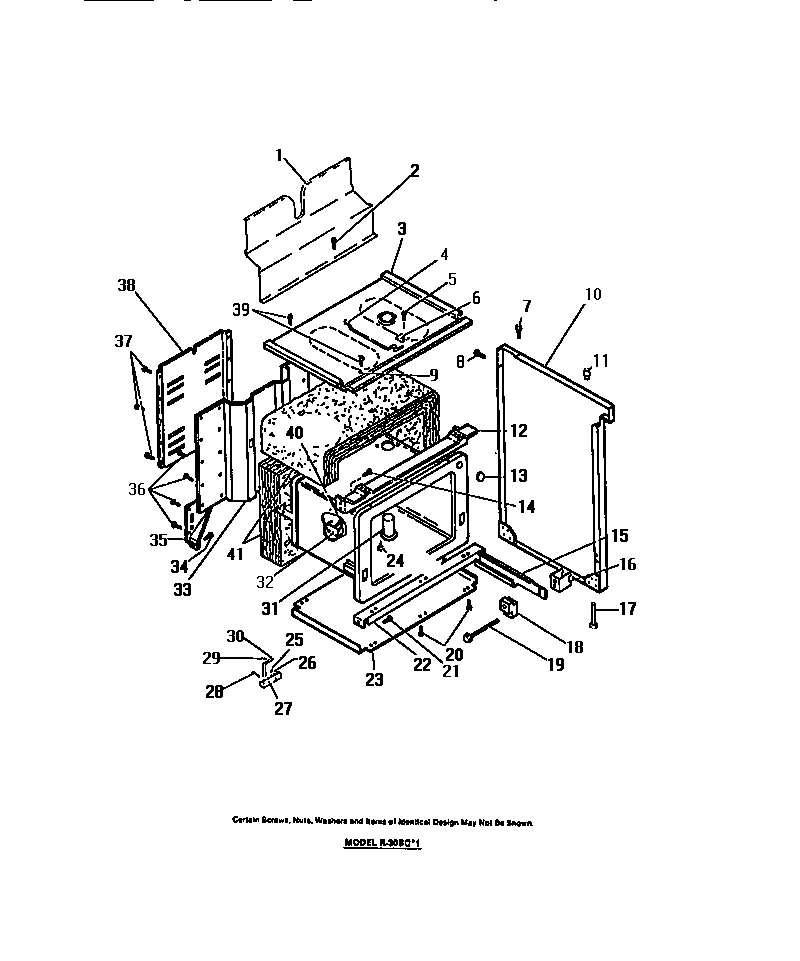

R30BCW1 14 – OVEN LINER, SIDE PANELS

Products

Position	Product
1	WCI 8015738
3	WCI 8012542
4	WCI 8003079
6	WCI 8003316
7	SCREWS (2)
9	WASHERS (2)
10	PANEL, END RH, WHITE
10A	PANEL, END, LH, WHITE
11	BUMPERS (4)
12	WCI 8011092
13	WCI 8002852
15	RAIL, RH DRAWER
15A	RAIL, LH DRAWER
16	SPACERS (2)
17	WCI 8005299
18	GUIDES (2)
19	SCREWS (2)
22	WCI 8002872
23	WCI 8016482
24	SCREWS (2)
25	WCI 8003148
26	WASHER (6)
27	BLOCK
28	SCREWS (2)
29	SCREW, GROUND WIRE
30	WCI 8003146
31	WCI 8012541
32	WCI 8002854
33	WCI 8015749
35	GUSSETS, RH
35A	GUSSETS, LH
38	WCI 8015750
39	SCREWS (2)
40	SCREW
