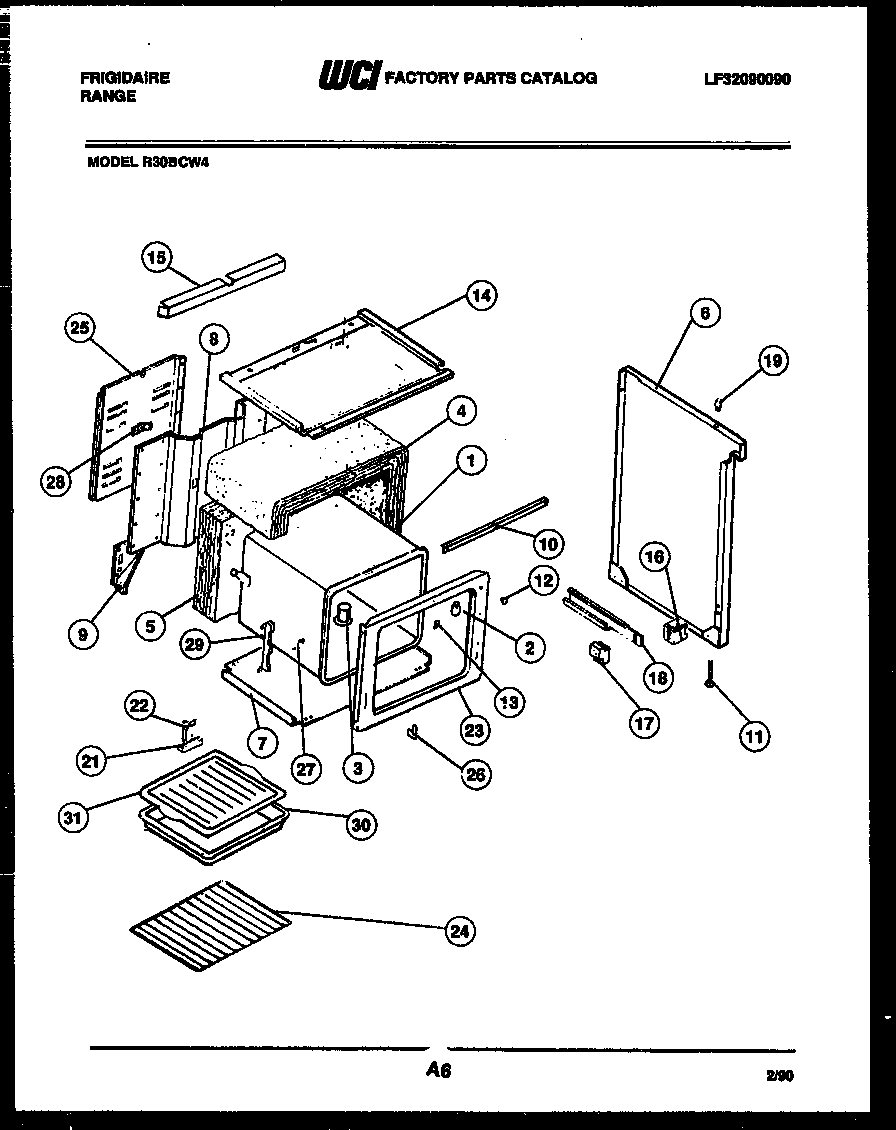

R30BCW4 06 – BODY PARTS

Products

Position	Product
*29368	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	BODY-OVEN
2	WCI 3017576
3	WCI 08012541
4	INSULATION - OVEN WRAP
5	INSULATION
6	SIDE PANEL, LH WHITE
6A	SIDE PANEL, RH WHITE
7	WCI 3206275
8	PANEL-BACK
9A	WCI 3017482
9	WCI 3017481
10	WCI 5303207391
11	LEG, LEVELLER (4)
12	BUTTON-PLUG
13	WCI 3203082
15	WCI 3206095
16	SPACER, DRAWER RAIL (2)
17	GUIDE-DRAWER FRNT (2)
18	WCI 5308015746
18A	RAIL, DRAWER LH
19	BUMPER, COOKTOP (4)
21	5304409888 Frigidaire Oven Terminal Block with Hardware
22	STRAP-GROUND
23	WCI 5303207446
24	316067902 Frigidaire Oven Rack
25	WIRING COVER
26	WCI 3019063
27	WCI 3201632
28	WCI 3016281
29	WCI 3201631
29A	WCI 5300009126
30	WCI 3205539
31	GRILLE, BROILER
