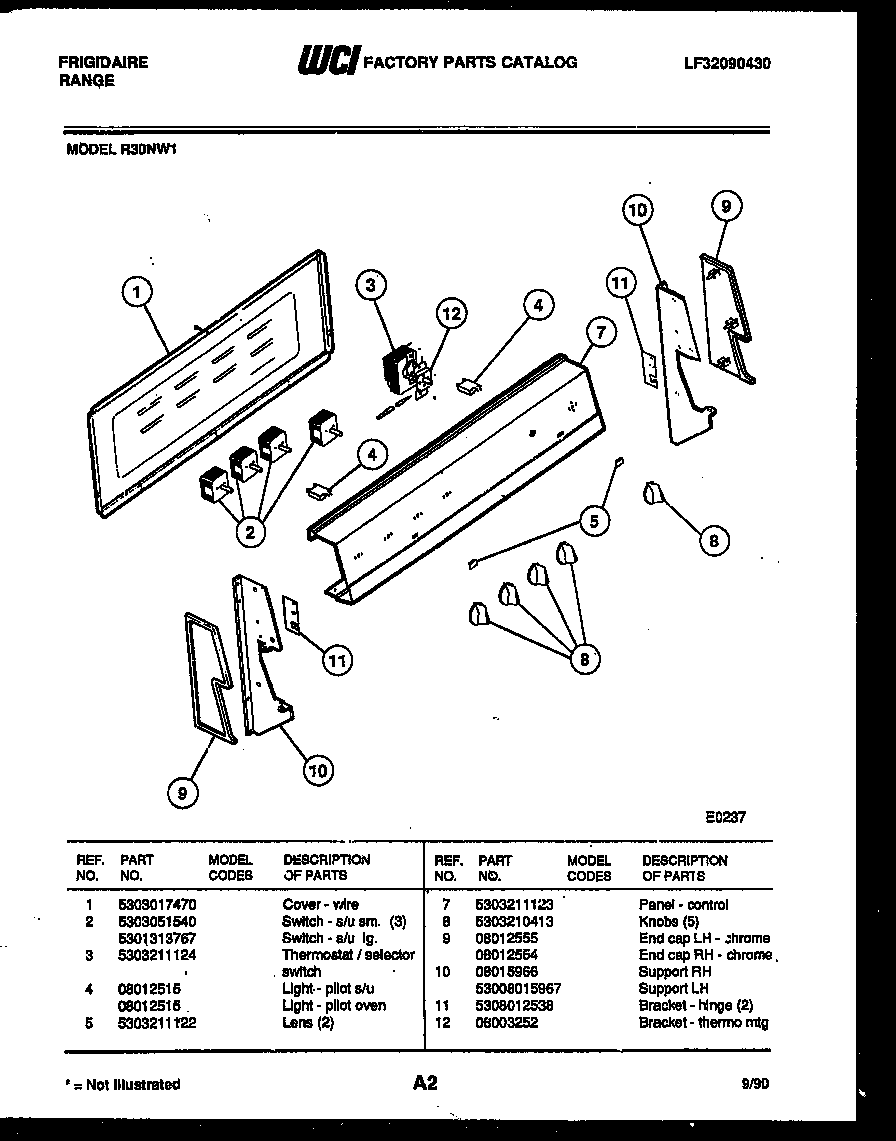

R30NL1 02 – CONTROL PANEL

Written by

Products

Position	Product
1	COVER, WIRE.
2A	5303935086 Frigidaire Oven Top Burner Switch Kit
3	THERMOSTAT/SELECTOR SWITCH
4A	IND LITE OVEN
5	LENS (3)
7	WCI 5303211123
8	KNOBS-GRAY & BURGUNDY (6)
10	SUPPORT RH
10A	WCI 53008015967
11	BRACKET, HINGE (2)
12	WCI 08003252
