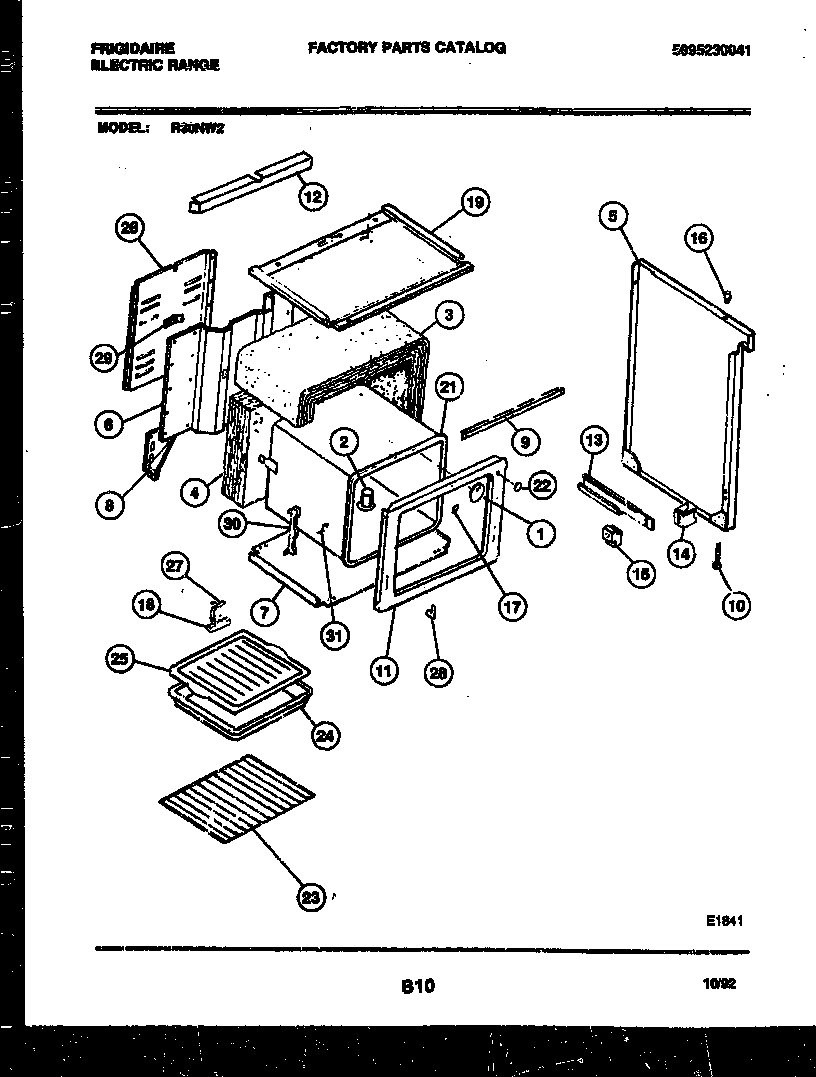

R30NW2 06 – BODY PARTS

R30NW2 06 – BODY PARTS

Written by

in

R30NW2 06 – BODY PARTS

Products

PositionProduct
*69260WCI 19100210093
*69260ANTI-TIP KIT, (NON-ILLUSTRATED)
*692605303284616 Frigidaire Range Bulb Clip Thermostat
1WCI 3017576
2WCI 08012541
3INSULATION – OVEN WRAP
4WCI 5303274967
5ASIDE PANEL, LH WHITE
5SIDE PANEL, RH WHITE
6PANEL-BACK
7WCI 3206275
8AWCI 3017482
8WCI 3017481
9WCI 5303207391
10SCREW-LEVELING (4)
11FRONT – OVEN
12WCI 3206095
13ARAIL, DRAWER LH
13WCI 5308015746
14SPACER, DRAWER RAIL (2)
15GUIDE-DRAWER FRNT (2)
16BUMPER, COOKTOP (4)
17WCI 3202082
185304409888 Frigidaire Oven Terminal Block with Hardware
19PANEL – SUBTOP
21OVEN LINER
22BUTTON-PLUG
23316067902 Frigidaire Oven Rack
24WCI 5303292688
25GRILLE – BROILER
26WIRE, COVER
27PLATE=GROUND STRAP
28WCI 3019063
29WCI 3016281
30WCI 3201631
31WCI 3201632
