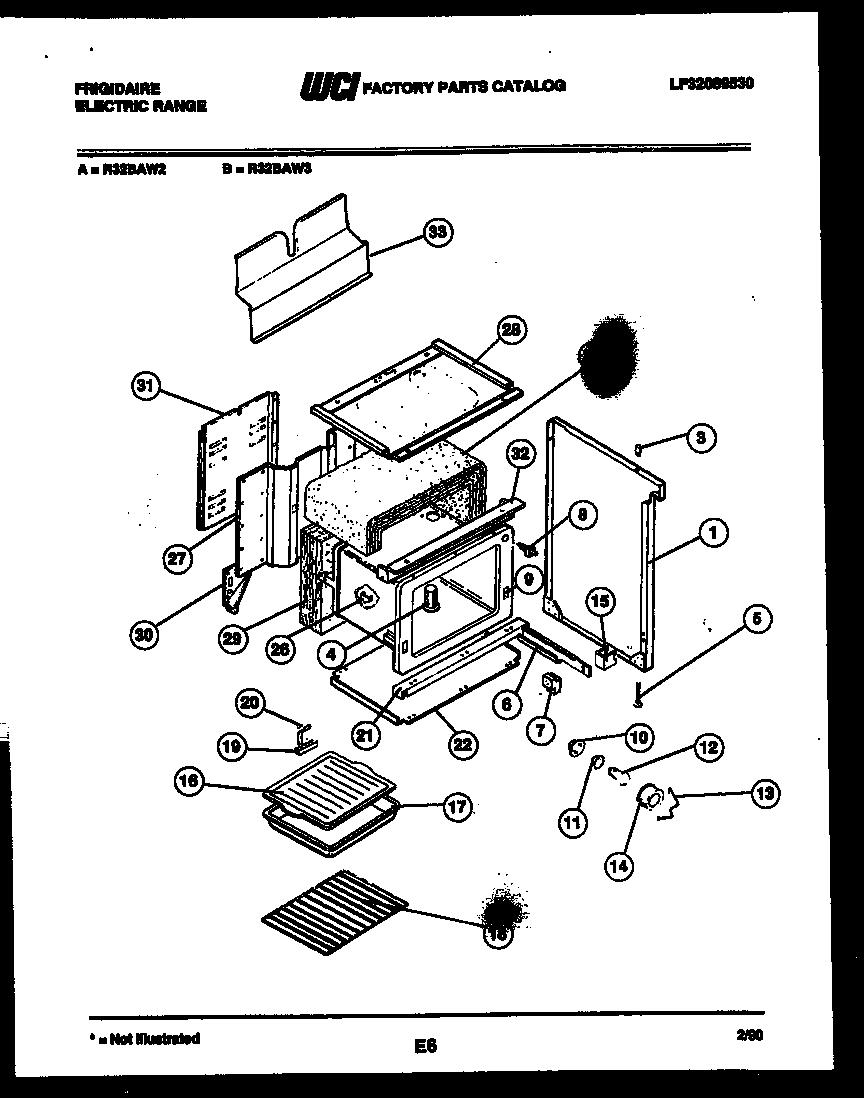

R32BAL2 06 – BODY PARTS

Products

Position	Product
1	SIDE PNL – RH (ALMD)
1A	WCI 08012530
3	BUMPER – COOKTOP (4)
4	WCI 08012541
5	LEG, LEVELLER (4)
6A	RAIL, DRAWER LH
6	WCI 08015746
7	GUIDE-DRAWER FRNT (2)
8	SWITCH-DOOR
9	LINER, OVEN
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINER – LENS
14	5304524341 Frigidaire Lens
15	SPACER, DRAWER RAIL (2)
16	WCI 08005314
17	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
18	316067902 Frigidaire Oven Rack
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	STRAP-GROUND
21	CHANNEL – OVEN SUPPORT LOWER
22	WCI 3017394
24	INSULATION – OVEN WRAP
26	BRACKET-THERMO BULB (2)
27	WCI 3017535
28	WCI 08012542
29	INSULATION-OVEN BACK
30	WCI 3017481
30A	WCI 3017482
31	COVER – WIRE
32	WCI 08011092
33	WCI 3017602
