R32BAW1 04 – CONTROL PANEL, CONTROLS – Aparts

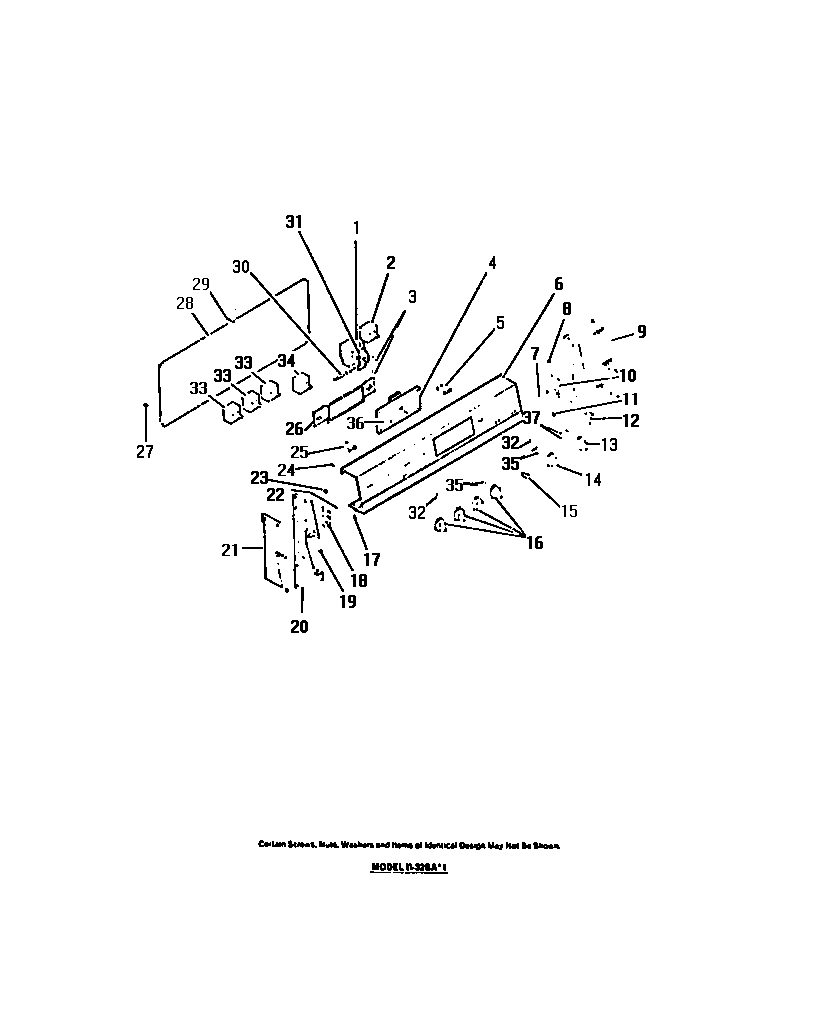

R32BAW1 04 – CONTROL PANEL, CONTROLS

Products

Position	Product
1	WCI 8005306
2	WCI 8016480
3	WCI 8012251
4	WCI 8012575
5	PILOT LIGHT, OVEN, LEFT
6	WCI 8016515
9	WCI 8012556
12	WCI 8012539
15	KNOBS-COOK-MASTER (3)
16	KNOB, SURFACE UNITS (4)
17	SCREWS (2)
18	WCI 8012538
20	WCI 8012540
21	WCI 8012557
23	WCI 8012553
24	SCREWS (2)
25	LIGHT, PILOT
26	BRACKET
28	WCI 8012513
29	SCREWS (2)
30	WCI 8008694
31	WCI 8003252
32	WCI 8012578
34	SWITCH, 8`` SURFACE UNIT (2)
35	WCI 8003135
36	WCI 8004153
37	WCI 8014214
