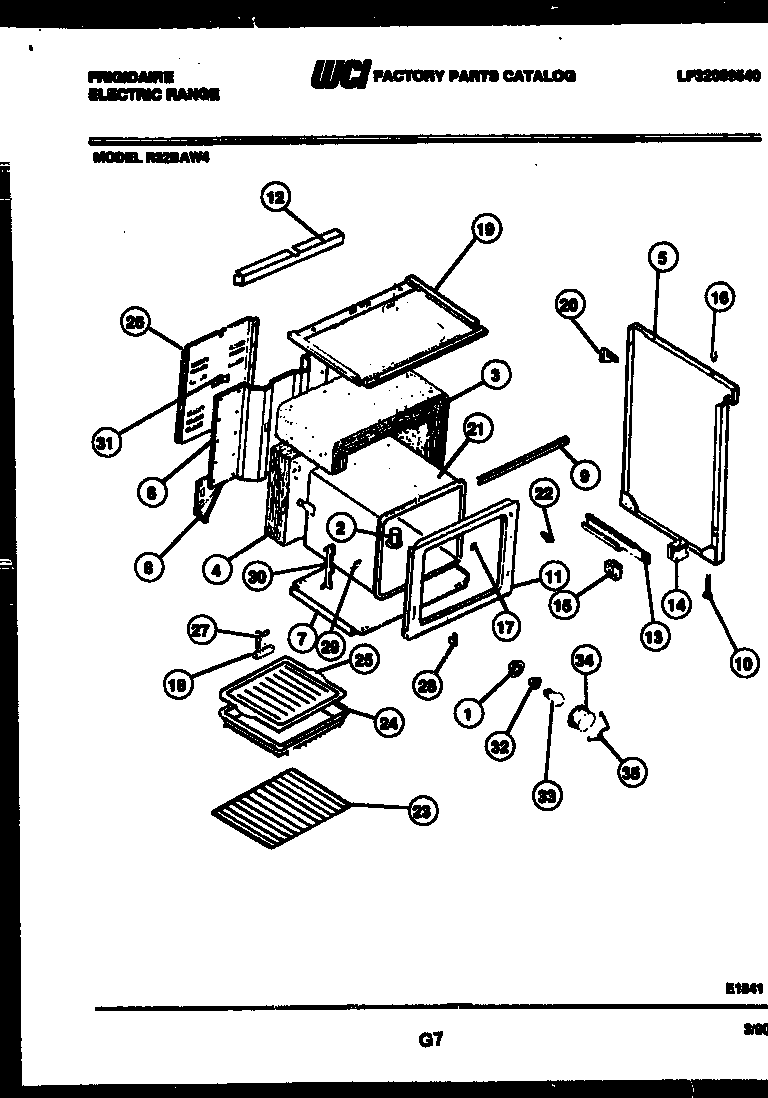

R32BAW4 06 – BODY PARTS

Products

Position	Product
1	WCI 3051511
2	WCI 08012541
3	INSULATION – OVEN WRAP
4	INSULATION-OVEN BACK
5	WCI 08012527
5	PANEL-SIDE RH ALMD
6	PANEL-BACK
7	WCI 3206275
8	WCI 3017481
8A	WCI 3017482
9	WCI 5303207391
10	LEG, LEVELLER (4)
11	WCI 5303207446
12	WCI 3206095
13	WCI 08015746
13A	RAIL, DRAWER LH
14	SPACER, DRAWER RAIL (2)
15	GUIDE-DRAWER FRNT (2)
16	BUMPER – COOKTOP (4)
17	WCI 3202082
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI 08012542
20	GUSSET – BKGRD (2)
21	BODY-OVEN
22	SWITCH, OVEN LIGHT
23	316067902 Frigidaire Oven Rack
24	WCI 3205232
25	WCI 3202534
26	COVER – WIRE
27	STRAP-GROUND
27A	ANTI-TIP KIT, (NON-ILLUSTRATED)
28	WCI 3019063
29	WCI 3201632
30	WCI 3201631
30A	CLIP-CAPILLARY (NON-ILLUSTRATED)
31	WCI 3016281
32	316116400 Frigidaire Oven Light Socket
33	316538904 Frigidaire Oven Lamp Light
34	WCI 0801086
35	RETAINER – LENS
