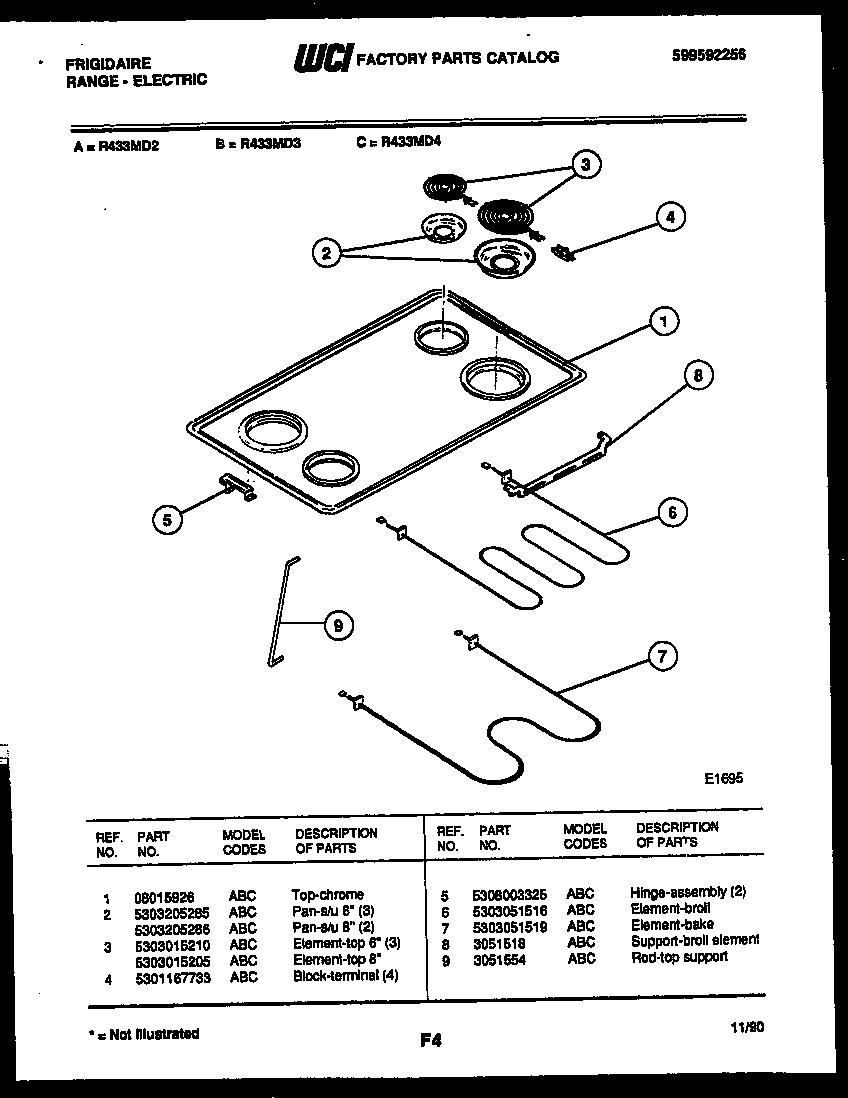

R433MDM4 04 – COOKTOP AND BROILER PARTS

R433MDM4 04 – COOKTOP AND BROILER PARTS

Written by

in

R433MDM4 04 – COOKTOP AND BROILER PARTS

Products

PositionProduct
1WCI 08015926
2A316048413 Frigidaire Oven Range Chrome 8" Drip Bow
2316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
3318372211 Frigidaire Oven 6" Electric Range Burner Kit
3A5308011964 Frigidaire Surface Element P1
45303935058 Frigidaire Oven Burner Receptacle Kit
5HINGE ASSEMBLY (2)
65303051516 Frigidaire Broil Element
75303051519 Frigidaire Oven 2600W Bake Element
8HANGER – BROIL UNIT
9ROD-TOP SUPPORT
