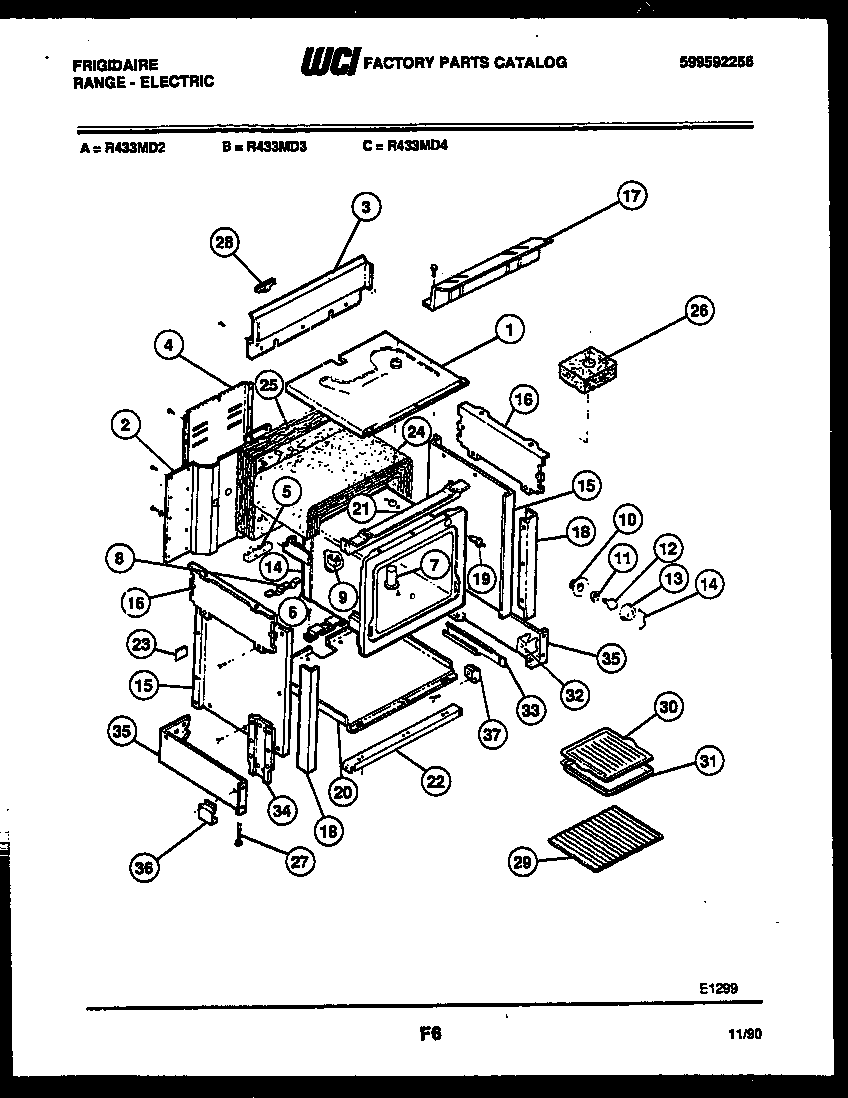

R433MDM4 06 – BODY PARTS

Products

Position	Product
*29166	ANTI-TIP KIT
1	WCI 5303051553
2	BACK
3	BACK-UPPER
4	PANEL – WIRE COVER
5	5304409888 Frigidaire Oven Terminal Block with Hardware
6	WCI 3204607
7	WCI 08003333
8	WCI 3203574
9	BRACKET-THERMO BULB (2)
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	5304524341 Frigidaire Lens
14	RETAINER-LENS
15	SHIELD-INSULATION (2)
16	WCI 5308015935
17	WCI 5305113502
18	WCI 3051777
19	WCI 5301314211
20	SHIELD-BOTTOM
21	WCI 5308008693
22	WCI 08012722
23	PLATE-FILLER
24	INSULATION – OVEN WRAP
25	INSULATION
26	INSUL.-VENT TUBE
27	SCREW-LEVELING (4)
28	BRACKT-HNG SUPT
29	316067902 Frigidaire Oven Rack
30	WCI 5303131356
31	PAN-BROILER
32	SPACER, DRAWER RAIL (2)
33A	GLIDE – DWR RH
33	GLIDE – DWR LH
34	SUPPORT-FRONT (2)
35A	WCI 5301324082
35	WCI 5301324083
36	SHIELD-TOE (2)
37	GUIDE-DRAWER FRNT (2)
