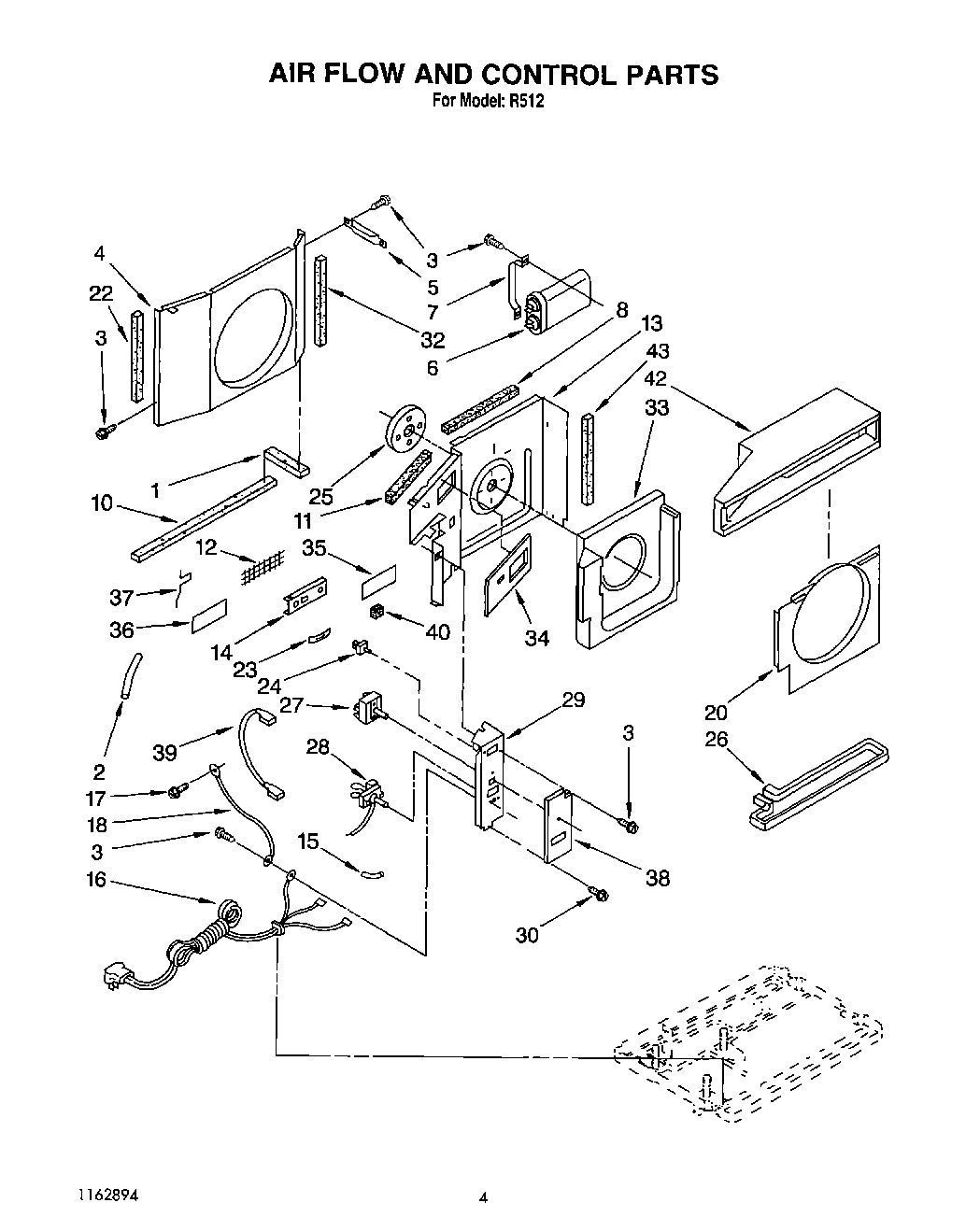

R512 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
2	Sealer, Foam Tube
3	Screw, 8 x 3/8
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Guard, Edge Seal
11	Guard, Edge Seal
12	Screen, Exhaust Door
13	Wall, Dividing
14	Door, Exhaust
15	Sleeve, Insulator Temp. Control
16	Cord, Appliance
17	Screw 8-18 x .295
18	Wire, Ground
20	Shroud, Evaporator
22	Seal
23	Spring, Retainer
24	Actuator, Door
25	Insulation, Motor
26	Pan, Evaporator
27	Switch, Rotary
28	Control, Temperature
29	Panel, Control
30	Screw, 6-32 x .175
32	Seal, Condenser (R.S.)
33	Housing, Air
34	Insulation, Exhaust Door
35	Spacer
36	Barrier Protective
37	Arm, Exhaust Door
38	Insulation, Control Panel
39	Wire, Jumper
40	Sealer, Tube
42	Hood, Air Housing
43	WP854334 Whirlpool Air Conditioner Sealing Strip
