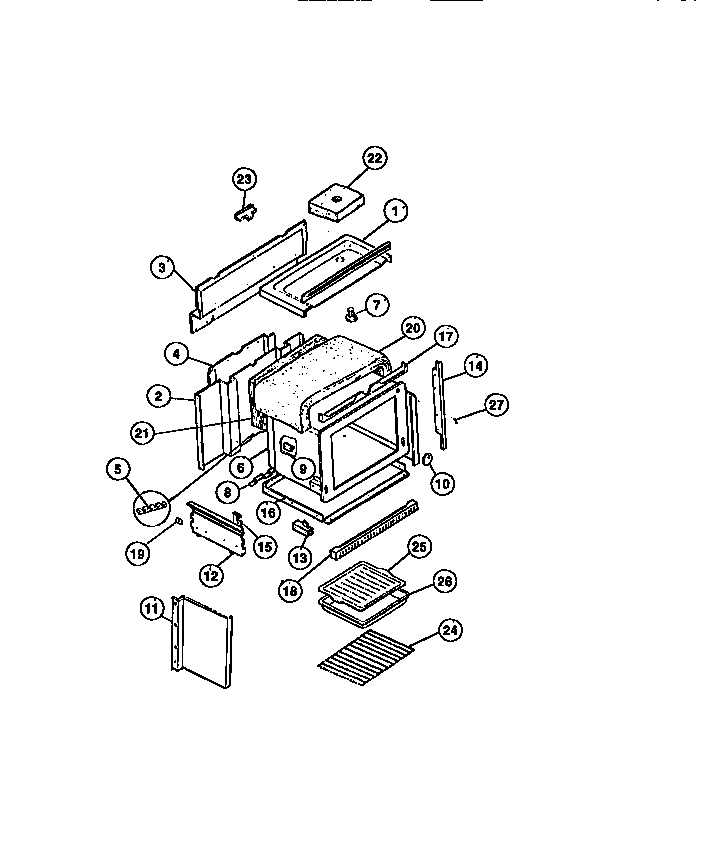

R530DH3 04 – CAVITY & PANELS

Products

Position	Product
1	WCI 5303051553
2	BACK
3	BACK-UPPER
4	PANEL - WIRE COVER
5	5304409888 Frigidaire Oven Terminal Block with Hardware
6	WCI 3204607
7	WCI 08003333
8	WCI 3203574
9	BRACKET-THERMO BULB (2)
10	COVER, LIGHT
11	SHIELD-INSULATION (2)
12	WCI 5308015935
13	WCI 3051527
13	WCI 3051528
14	TRIM-FRONT (2)
15	PLATE, END CAP (2)
16	RETAINER, INSUL BTM
17	WCI 5308008693
18	WCI 5308012249
19	PLATE-FILLER
20	INSULATION - OVEN WRAP
21	INSULATION
22	INSUL.-VENT TUBE
23	BRACKT-HNG SUPT
24	316067902 Frigidaire Oven Rack
25	WCI 3203164
26A	WCI 3203578
26B	WCI K1164545
26	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
