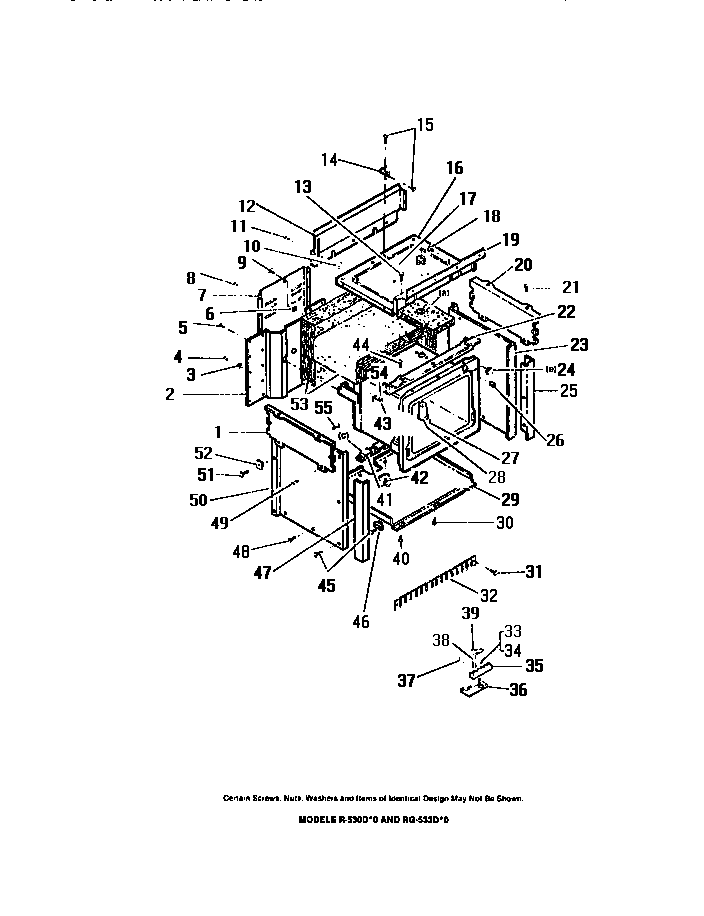

R530DW0 14 – OVEN LINER, SIDE PANELS

R530DW0 14 – OVEN LINER, SIDE PANELS

Written by

in

R530DW0 14 – OVEN LINER, SIDE PANELS

Products

Position	Product
2	WCI 8015941
3	WASHERS (2)
6	WCI 8008695
7	WCI 8015750
10	WCI 8002867
12	WCI 8008689
14	WCI 8015929
16	WCI 8015927
17	WCI 8003079
18	SCREWS
19	WCI 8015928
20	WCI 8015935
21	SCREWS (2)
22	WCI 8005391
24	WCI 8002852
26	WCI 8015948
27	SCREWS (2)
28	WCI 8003333
29	WCI 8011091
31	SCREWS (2)
32	WCI 8012249
33	WCI 8003148
35	BLOCK
37	SCREWS (2)
38	WCI 8003146
39	SCREW, GROUND WIRE
40	WCI 8012213
41	WCI 8015961
43	WCI 8002854
46	WCI 8012244
46A	WCI 8012245
47	WCI 8003334
50	WCI 8012226
51	SCREWS (2)
52	PLATE-FILLER (2)
54	SCREW
55	SCREW (4)
