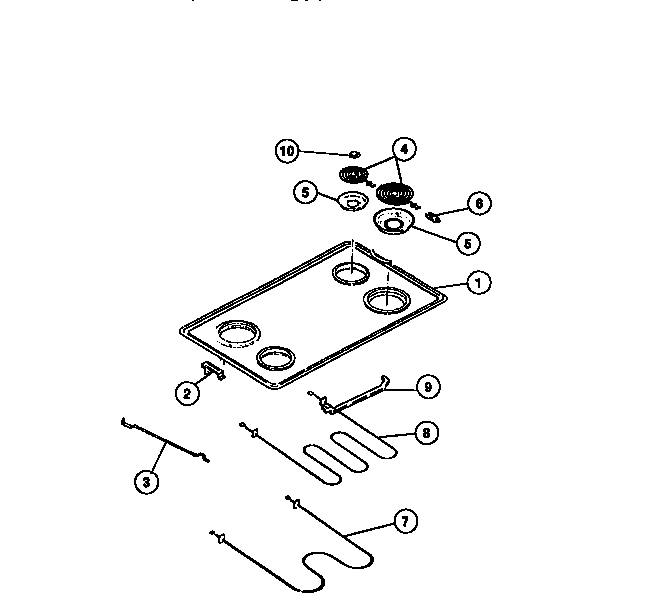

R530DW1 03 – COOK TOP, SURFACE UNITS, DRIP PANS,

R530DW1 03 – COOK TOP, SURFACE UNITS, DRIP PANS,

Written by

in

R530DW1 03 – COOK TOP, SURFACE UNITS, DRIP PANS,

Products

PositionProduct
1WCI 5308015918
2HINGE ASSEMBLY (2)
3ROD-TOP SUPPORT
4318372210 Frigidaire Oven Range 6" 1250W Surface Element
4316442300 Frigidaire Oven 2100W Coil Element 8
5316048413 Frigidaire Oven Range Chrome 8" Drip Bow
5316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
65303935058 Frigidaire Oven Burner Receptacle Kit
75303051519 Frigidaire Oven 2600W Bake Element
8SURFACE UNIT-LARGE (2)
9HANGER – BROIL UNIT
10MEDALLION, STAINLESS STEEL, SURF ELEM
