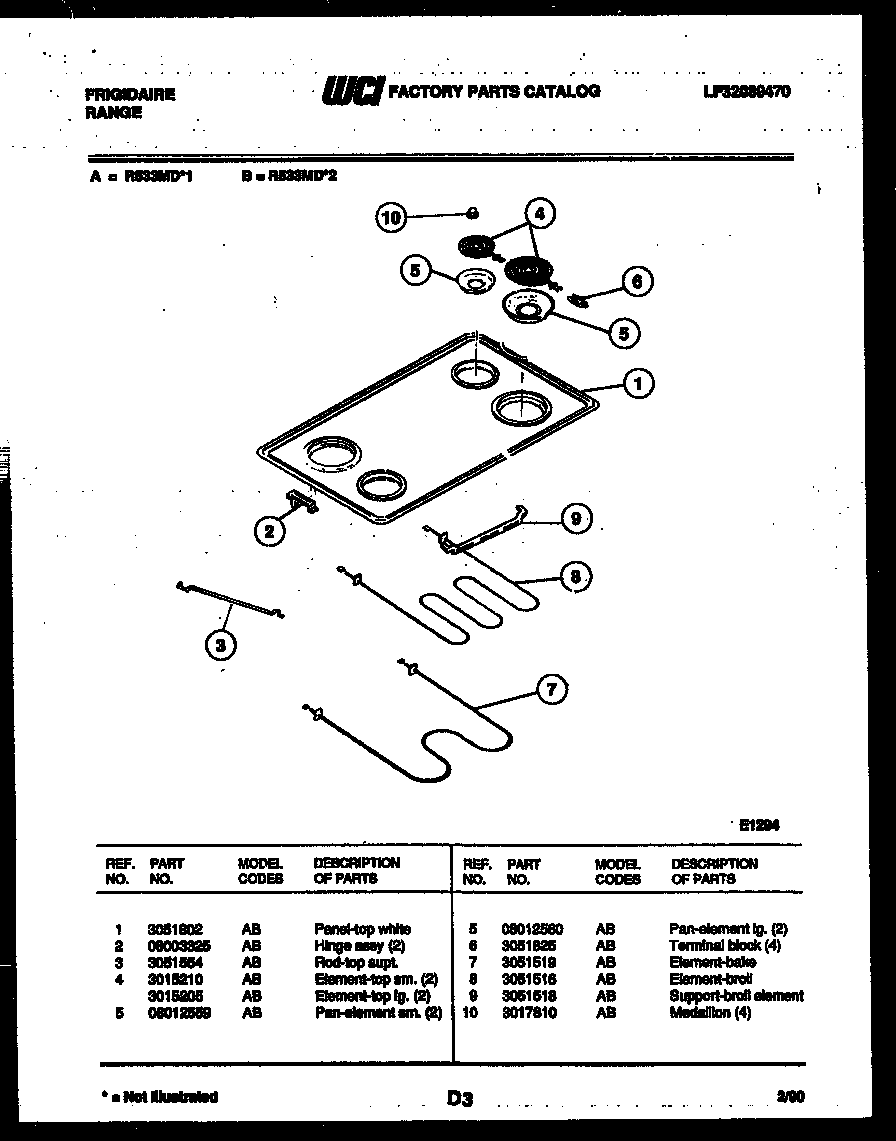

R533MDW1 03 – COOKTOP AND BROILER PARTS

R533MDW1 03 – COOKTOP AND BROILER PARTS

Written by

in

R533MDW1 03 – COOKTOP AND BROILER PARTS

Products

PositionProduct
1WCI 3051802
2HINGE ARM (2)
3ROD-TOP SUPPORT
4A5308011964 Frigidaire Surface Element P1
4318372211 Frigidaire Oven 6" Electric Range Burner Kit
5316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
5316048413 Frigidaire Oven Range Chrome 8" Drip Bow
65303935058 Frigidaire Oven Burner Receptacle Kit
75303051519 Frigidaire Oven 2600W Bake Element
85303051516 Frigidaire Broil Element
9HANGER – BROIL UNIT
10WCI 3017810
