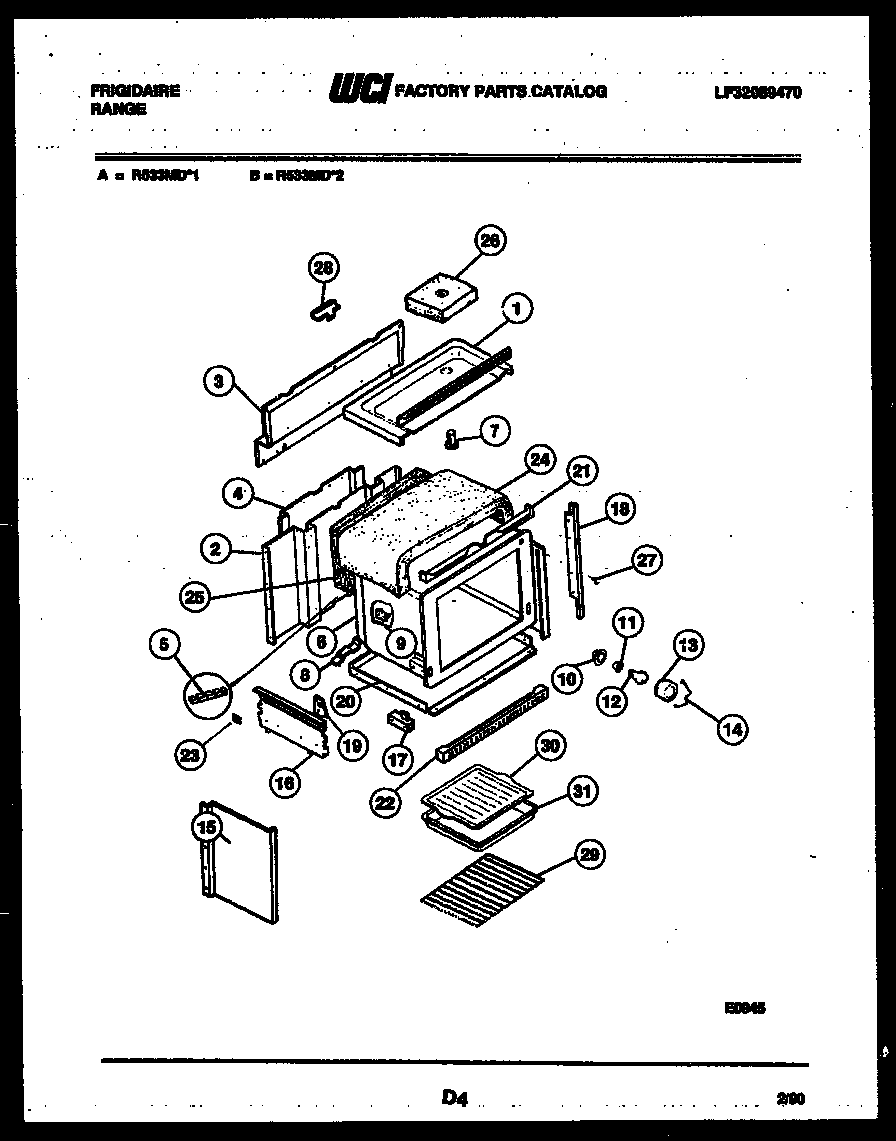

R533MDW1 04 – BODY PARTS

R533MDW1 04 – BODY PARTS

Written by

in

R533MDW1 04 – BODY PARTS

Products

PositionProduct
*28689WCI 3203578
*28689WCI K1164546
1WCI 3051553
2BACK
3WCI 08008689
4PANEL – WIRE COVER
55304409888 Frigidaire Oven Terminal Block with Hardware
7WCI 3051520
8WCI 3203574
9BRACKET-THERMO BULB (2)
10HOUSING – LIGHT
11316116400 Frigidaire Oven Light Socket
12316538904 Frigidaire Oven Lamp Light
135304524341 Frigidaire Lens
14WCI 08011087
15SHIELD-INSUL. (2)
16PANEL-UPPER SIDE (2)
17WCI 3051527
17WCI 3051528
18TRIM-FRONT (2)
19PLATE, END CAP (2)
20RETAINER, INSUL BTM
21WCI 08008693
22WCI 08012249
23PLATE-FILLER
24INSULATION – OVEN WRAP
25INSULATION – OVEN BACK
26INSUL.-VENT TUBE
28BRACKT-HNG SUPT
29316067902 Frigidaire Oven Rack
30WCI 3051562
315304442087 Frigidaire Range Wall Oven Broil Pan and Insert
