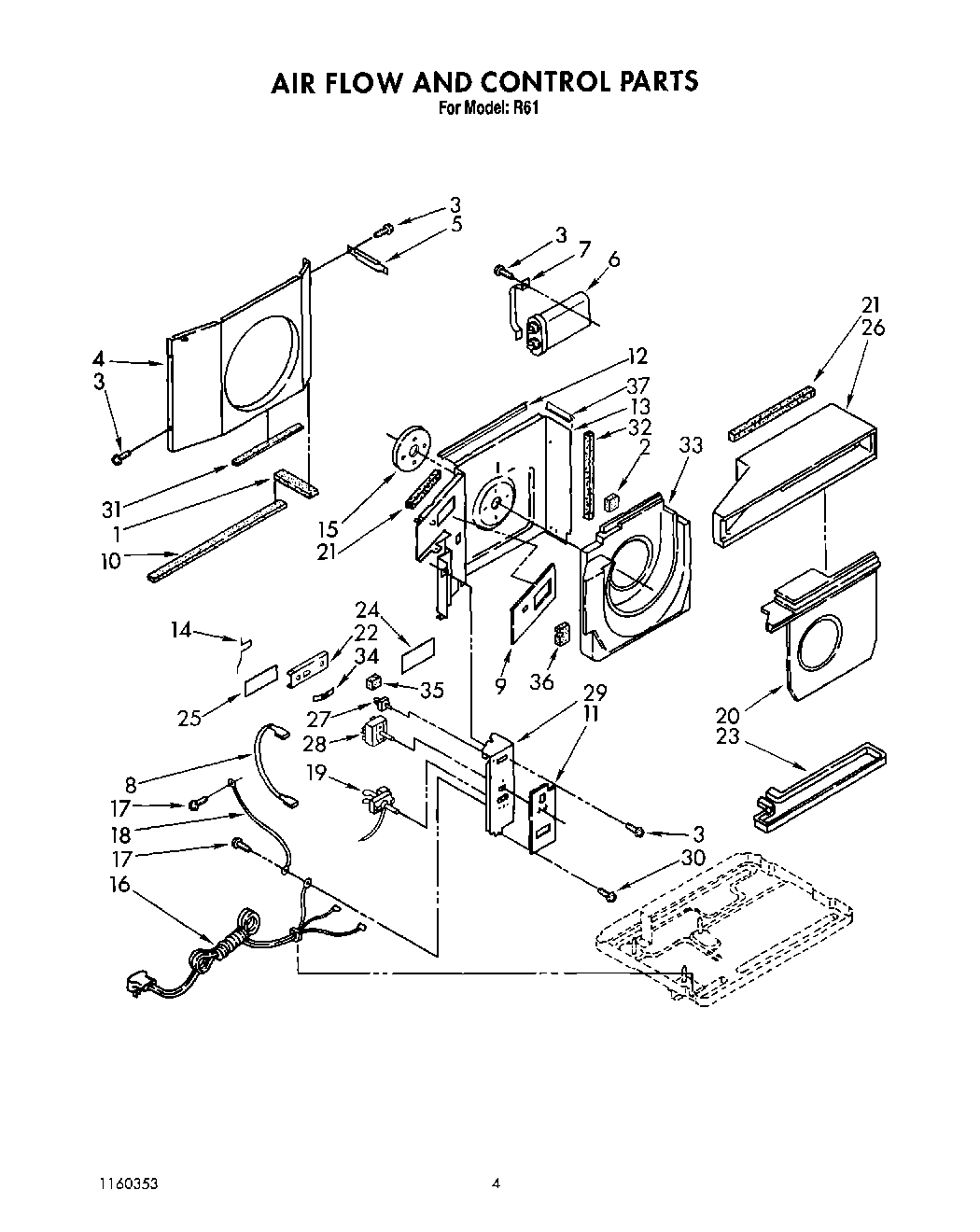

R61 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
2	Seal, Condenser (R.S.)
3	Screw, 8 x 3/8
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Wire, Jumper
9	Insulation, Exhaust Door
10	Seal
11	Insulation, Control Panel
12	Guard, Edge Seal
13	Wall, Dividing
14	Arm, Exhaust Door
15	Insulation, Motor
16	Cord, Appliance
17	Screw 8-18 x .295
18	Wire, Ground
19	Control, Temperature
20	Orifice, Air Housing
21	WP854334 Whirlpool Air Conditioner Sealing Strip
22	Door, Exhaust
23	Pan, Evaporator
24	Spacer
25	Barrier Protective
26	Hood, Air Housing
27	Actuator, Door
28	Switch, Rotary
29	Panel, Control
30	Screw, 6-32 x .175
33	Housing, Air
34	Spring, Retainer
35	Sealer, Tube
36	Sealer, Tube
37	Guard, Edge Seal
