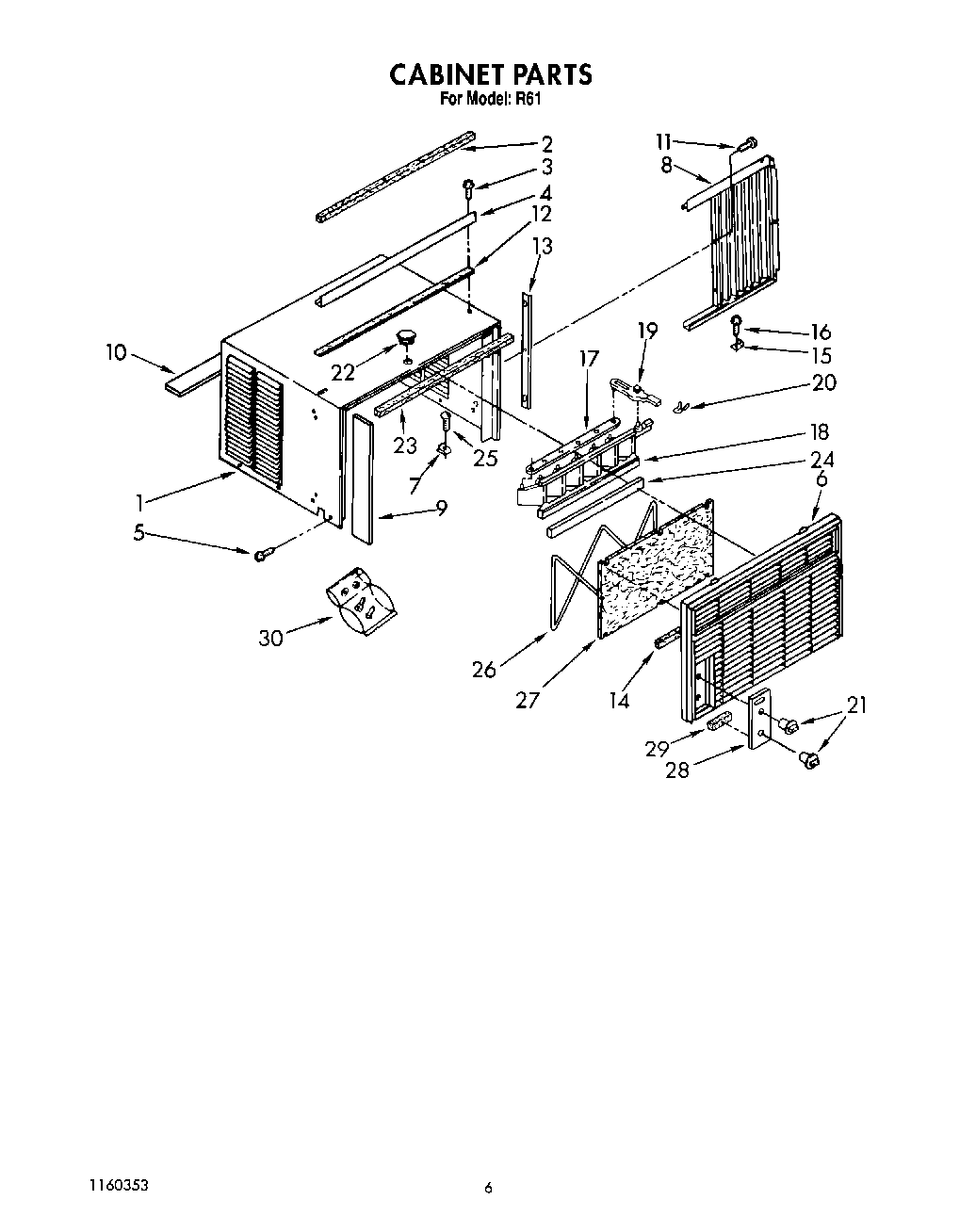

R61 04 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	Screw, 8-18 x 3/8
4	Channel, Top
5	WP489069 Whirlpool Compactor Screw
6	Front, Cabinet Assembly
7	Clip, Vertical Louver
8	Housing, Curtain (L.S.)
8	Housing, Curtain (R.S.)
9	Insulation, Side
10	Insulation, Top
11	Screw, 8 x 7/16
12	Seal, Strip
13	Retainer, Curtain (2)
15	Bracket
16	Screw, Wood 8-15 x .750
17	Link, Louver (2)
18	Louver, Vertical
19	Handle, Louver (2)
20	Detent Spring (2)
21	Knobs, (3)
22	Cover, Hole
23	Seal
24	Seal, Vertical Louver
25	Screw 8-18 x .295
26	Retainer, Filter
27	Filter
28	Escutcheon
29	WP854334 Whirlpool Air Conditioner Sealing Strip
30	Bag, Accessory
