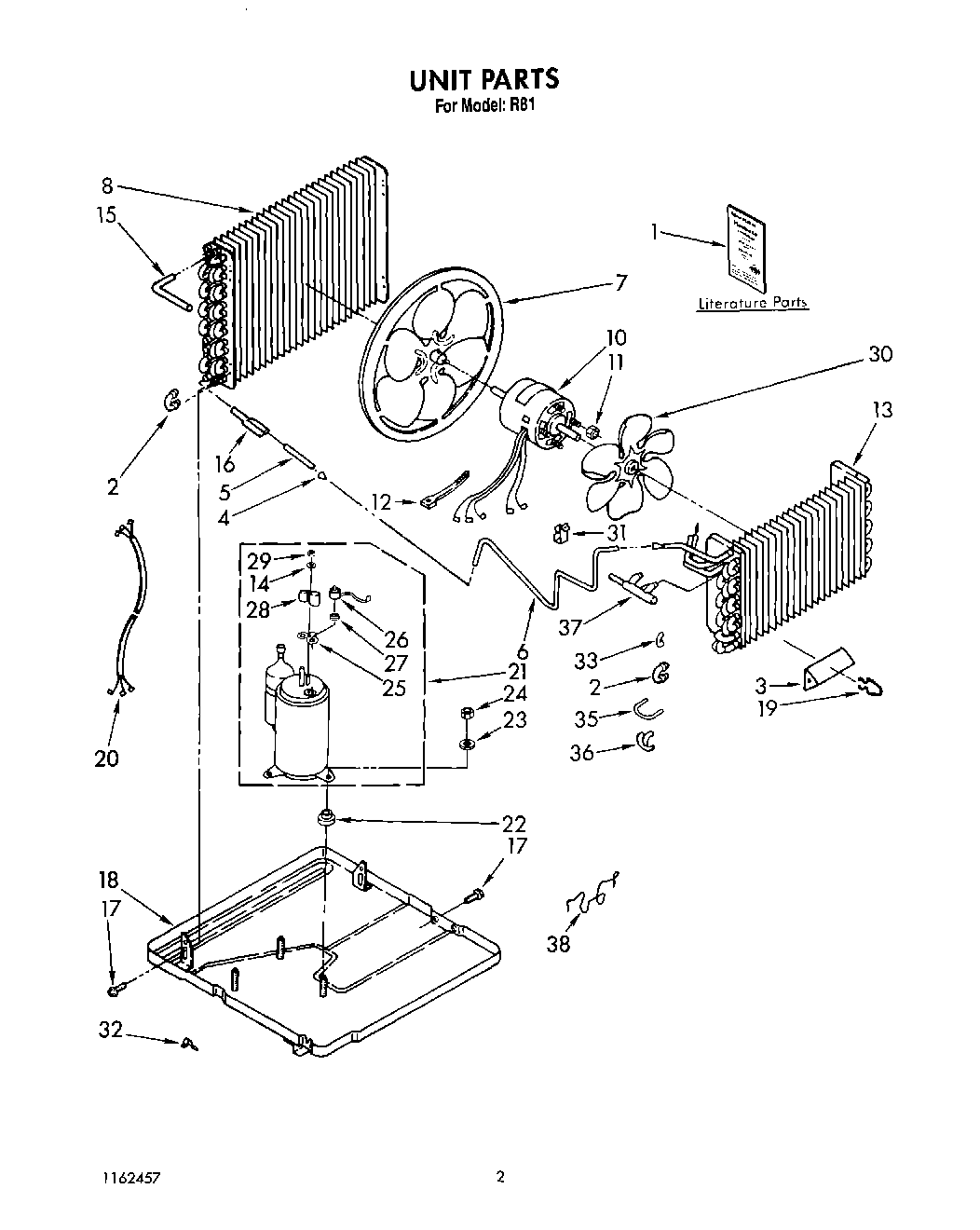

R81 02 – UNIT, LIT/OPTIONAL

R81 02 – UNIT, LIT/OPTIONAL

Written by

in

R81 02 – UNIT, LIT/OPTIONAL

Products

PositionProduct
1List, Repair Parts
1Guide, Operation
1Sheet, Tech
1Diagram, Wiring
2Bend, Return Condenser (10)
3Anticipator, Temperature
4Strainer
5Tube & Strainer (Includes Illus. 4)
6Tube, Restrictor
7Blade, Condenser Fan
8Condenser
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12WPW10339879 Whirlpool Wire Tie
13Evaporator
14Gasket, Nut
15Tube, Connecting
16Tube, Flow Divider
17Screw, Repair
17WP489069 Whirlpool Compactor Screw
18Base
19Clip, Anticipator
20Harness, Wiring
214317916 Whirlpool Air Conditioner Compressor
22Grommet
23WP120393 Whirlpool Washer Assembly
24Nut, Hex (4)
25WP950035 Whirlpool Cover Gasket
26WP1161170 Whirlpool Air Conditioner Overload
27Spring, Overload
28WP950036 Whirlpool Cover Assembly
29WP950027 Whirlpool Mounting Nut
30Blade, Fan (Evaporator)
31Clamp, Wiring
32Clamp, Tube (2)
33Bend, Return Condenser (1)
35Bend, Return Condenser (4)
36Bend, 3-Way
37Tube, Maniflod
38Clip, Mtg. (2) (Base to Front)
