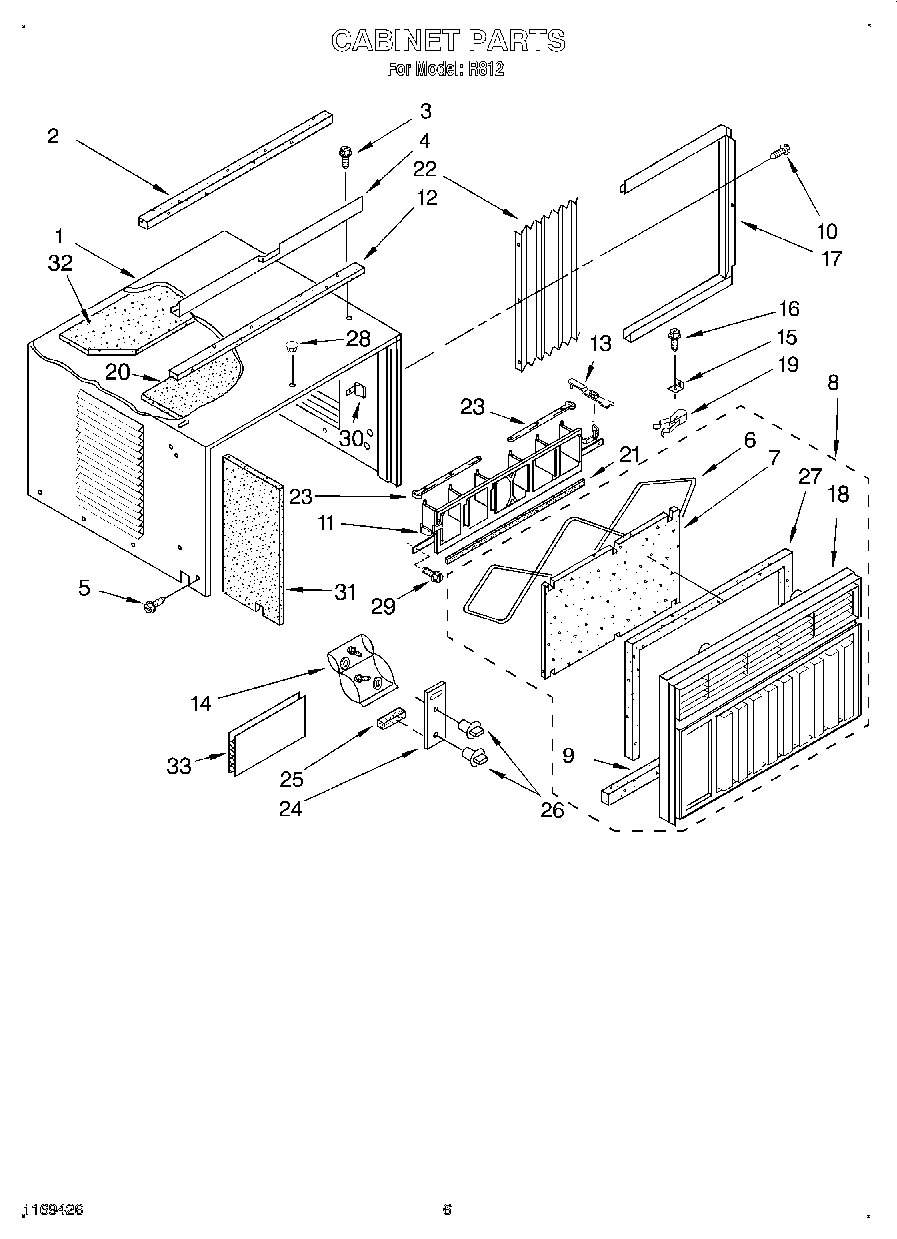

R812 04 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP308685 Whirlpool Microwave Screw
4Channel, Top
5WP489069 Whirlpool Compactor Screw
6Retainer, Filter
7Filter
8Front, Cabinet
9Seal, Front
10Screw, 8-18 x 3/8
11Louver, Vertical (Includes Illus. 12, 13, 14 and 27)
12Strip, Seal
13Handle, Vertical Louver (2)
14Bag, Accessory
15Bracket
16Screw, Wood 8-15 x .750
17Housing, Curtain L.S. (Includes No.8)
17Housing, Curtain R.S.(Includes No.8)
18Front
19Spring, Detent (2)
20Insul. Cabinet Top
21Seal, Vertical Louver
22Curtain (2)
23Link, Vertical Louver (2)
24Plate, Escutcheon
25Spacer, Escutcheon Plate (3)
26Knob, Control (2)
27Seal, Top & Sides
28Cover, Hole
29Screw 8-18 x .295
30Clip, Vertical Louver
31Insul. Cabinet (Right, Side)
31Insul. Cabinet (Left Side)
32Insul. Cabinet
33212643 Whirlpool Refrigerator Permagum Sealer
