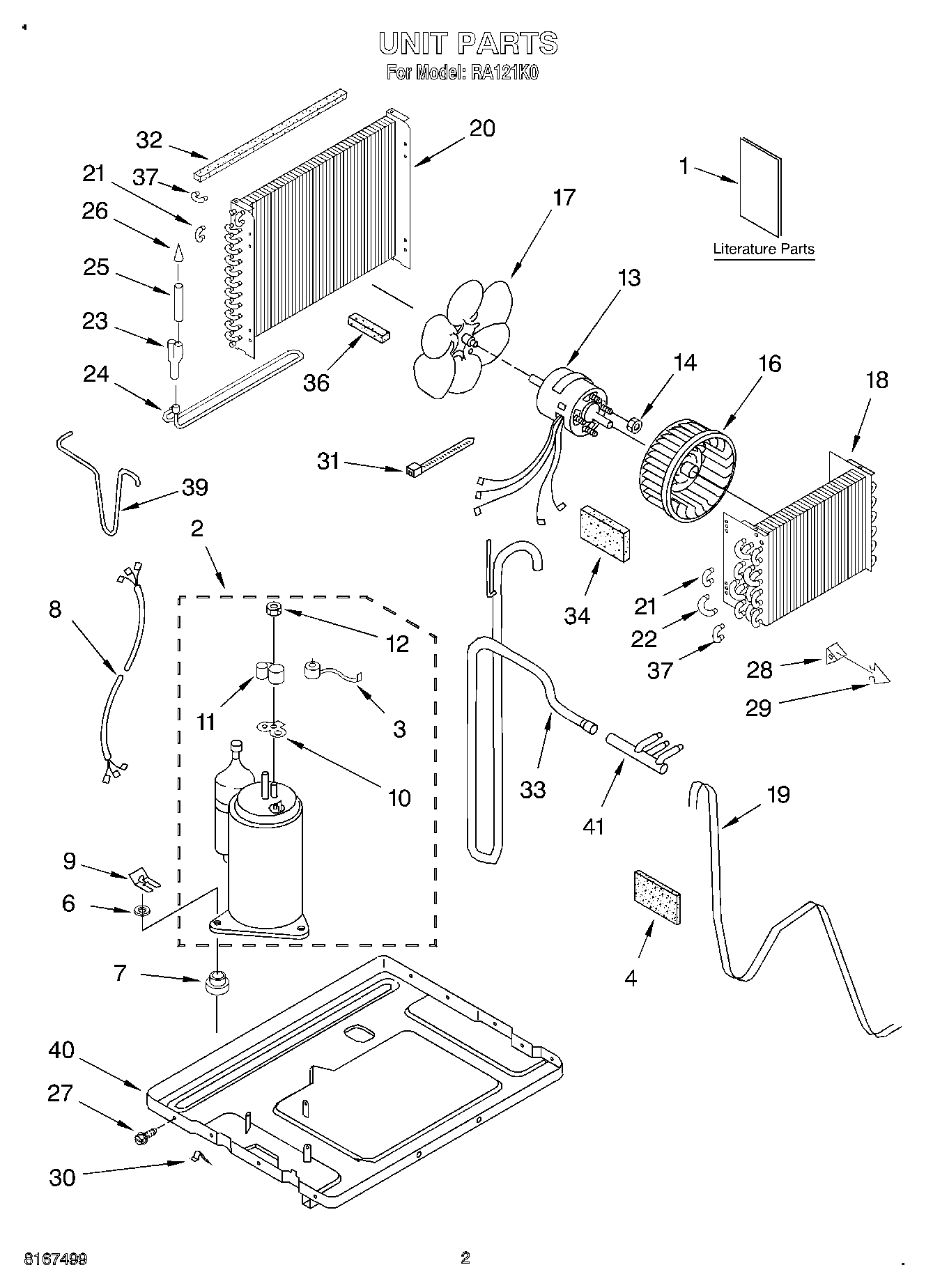

RA121K0 02 – UNIT, LITERATURE

Products

Position	Product
1	Energy Guide
1	Use & Care Guide
1	LITERATURE PARTS (Wiring Diagram)
2	Compressor
3	Overload
4	Seal, Anti-Rub
6	Washer, Nylon
7	Grommet
8	Wiring Harness, Compressor
9	Clip, Compressor
10	Gasket, Terminal Cover
11	Cover, Terminal
12	Nut, Hex
13	Motor, Fan
14	WP488130 Whirlpool Air Conditioner Nut
16	Wheel, Blower
17	Blade, Fan (Condenser)
18	Evaporator
19	Tube, Restrictor
20	Condenser
21	Bend, Return Evaporator (4) Condenser (4)
22	Bend, Return (5)
23	Tube, Flow Divider
24	Tube, Wet Loop
25	Tube, Outlet
26	Strainer
27	Screw, 8 x 3/8
28	Anticipator, Temperature
29	Clip, Anticipator
30	Clamp (2)
31	WPW10339879 Whirlpool Wire Tie
32	Seal
33	Tube, Suction
34	Insulation, Suction Tube
36	WP854334 Whirlpool Air Conditioner Sealing Strip
37	Bend, Return Condenser (4)
39	Tube, Discharge
40	Base
41	Tube, Manifold
