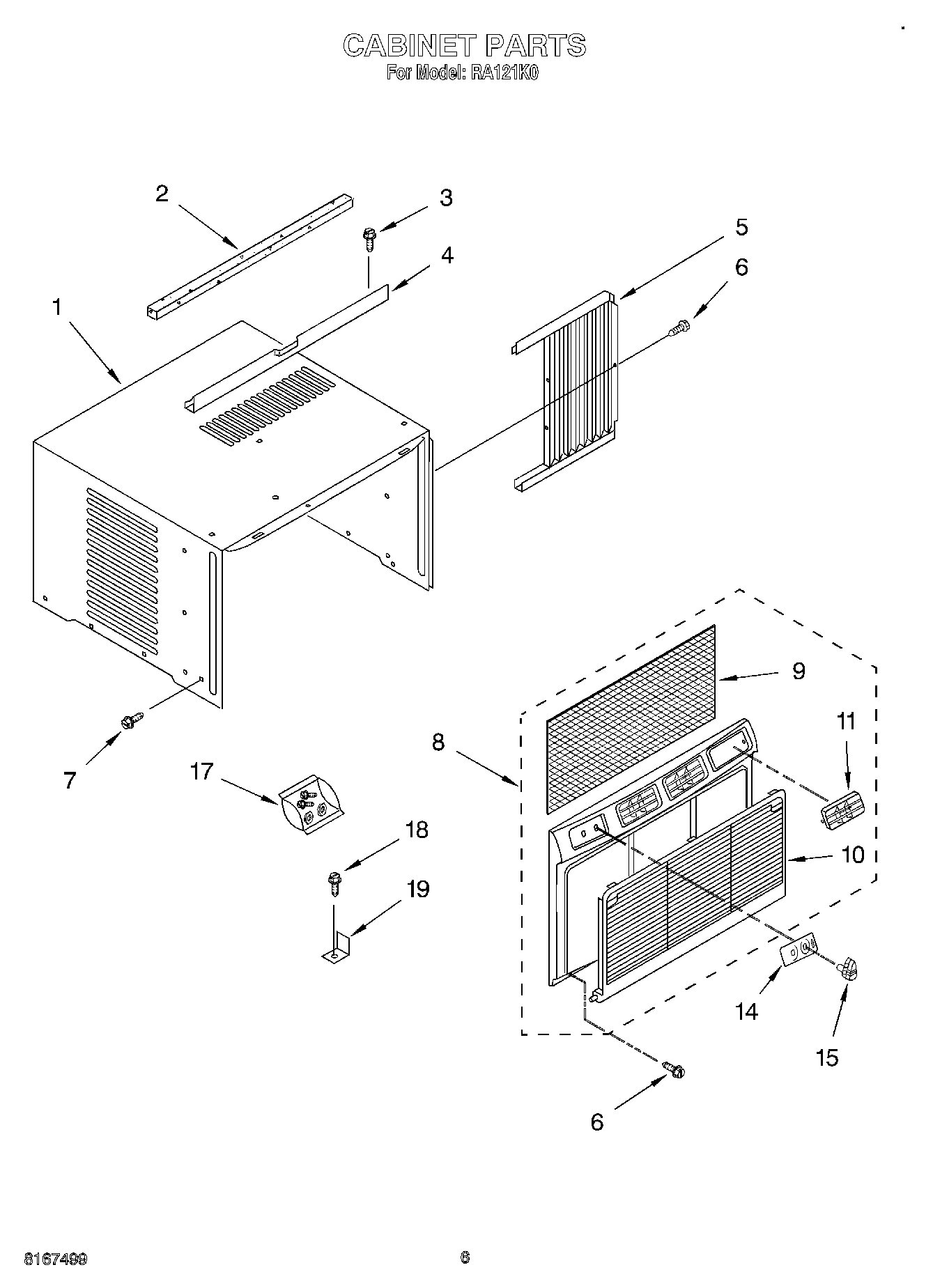

| 1 | Cabinet |
| 3 | WP3390631 Whirlpool Screw |
| 4 | Channel, Top |
| 5 | Curtain ((Left Side)) |
| 5 | Curtain ((Right Side)) |
| 6 | Screw, 8-18 x 3/8 |
| 7 | Screw, 8 x 3/8 |
| 8 | Front |
| 9 | Filter |
| 10 | Grille, Front |
| 11 | Louver Assembly |
| 14 | Escutcheon |
| 15 | WP8031121 Whirlpool Air Conditioner Control Knob |
| 17 | Bag, Accessory |
| 18 | Screw, Wood 8-15 x .750 |
| 19 | Bracket |
