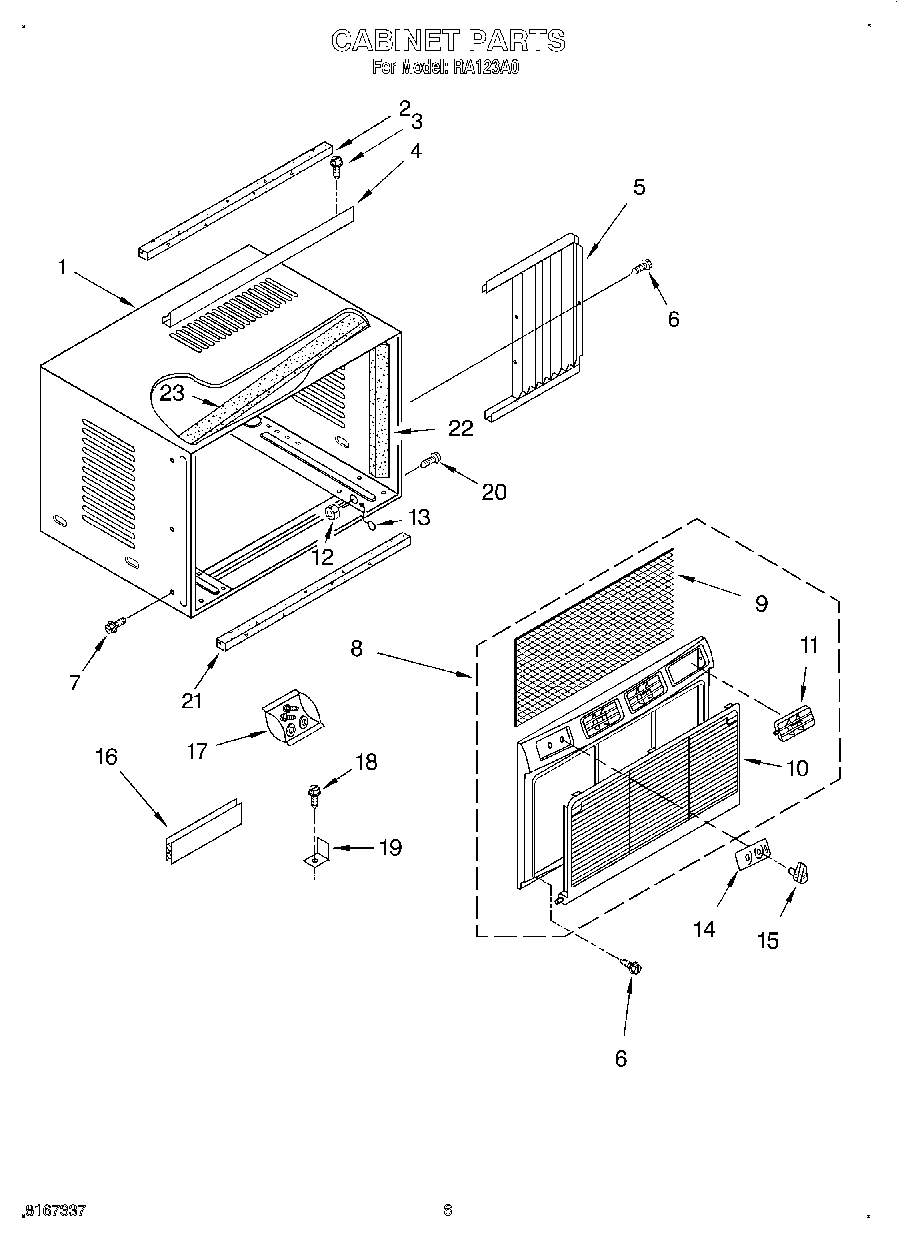

RA123A0 04 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	Screw 10-16 x .375
4	Channel, Top
5	Curtain ((Left Side))
5	Curtain ((Right Side))
6	Screw, 8-18 x 3/8
7	WP489069 Whirlpool Compactor Screw
8	Front
9	Filter
10	Grille, Front
11	Louver Assembly
12	WP486255 Whirlpool Air Conditioner Nut
13	Wire, Ground
14	Escutcheon
15	WP8031121 Whirlpool Air Conditioner Control Knob
16	212643 Whirlpool Refrigerator Permagum Sealer
17	Bag, Accessory
18	Screw, Wood 8-15 x .750
19	Bracket
20	WP488234 Whirlpool Air Conditioner Screw
21	Seal, Cabinet Bottom
22	Seal, Cabinet Side (2)
23	Seal, Top Cover
