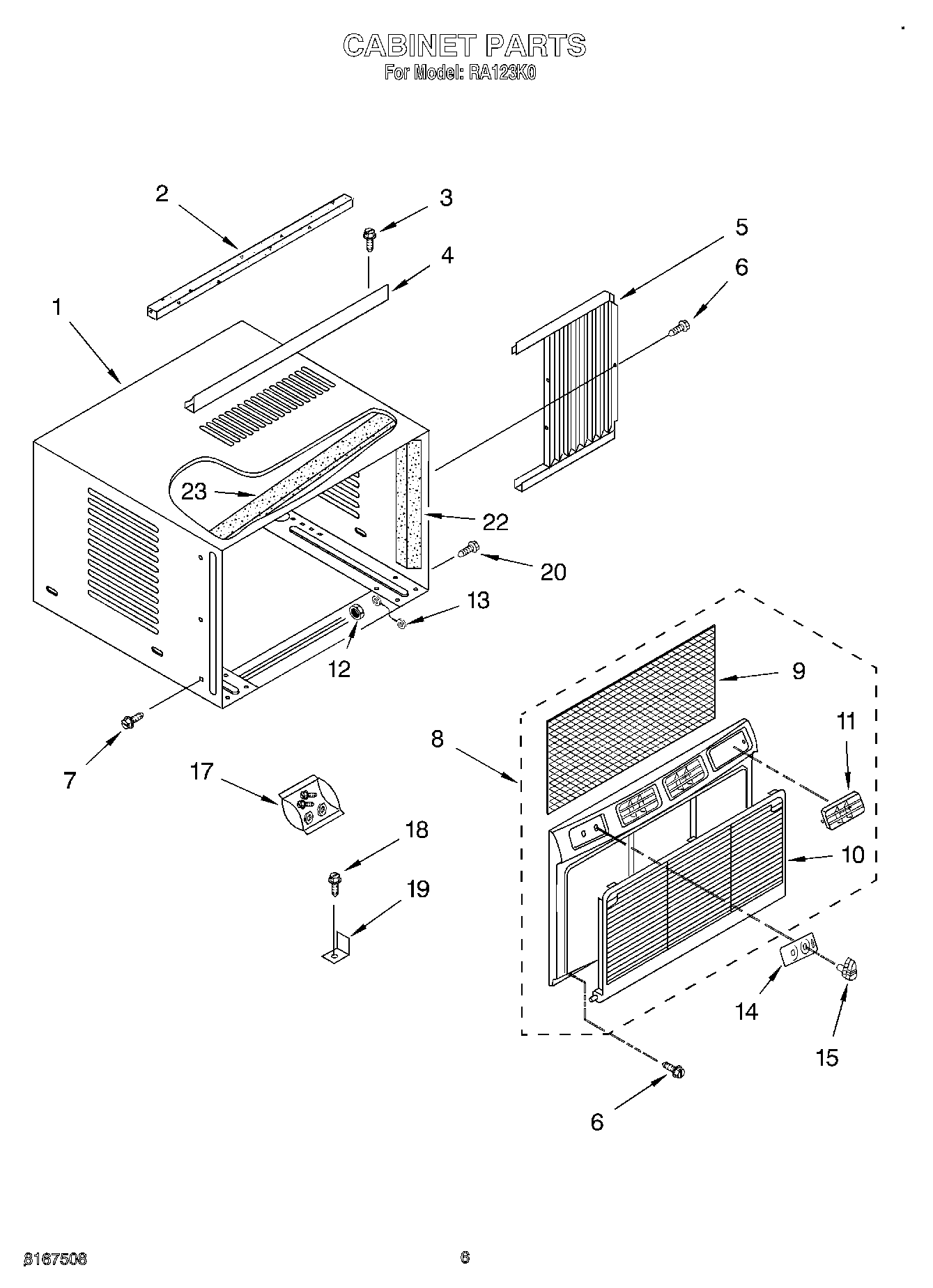

RA123K0 04 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP3390631 Whirlpool Screw
4Channel, Top
5Curtain ((Left Side))
5Curtain ((Right Side))
6W10491985 Whirlpool Screw
7WP489069 Whirlpool Compactor Screw
8Front
9Filter
10Grille, Front
11Louver Assembly
12WP486255 Whirlpool Air Conditioner Nut
13Wire, Ground
14Escutcheon
15WP8031121 Whirlpool Air Conditioner Control Knob
17Accessory, Bag
18Screw, Wood 8-15 x .750
19Bracket
20WP488234 Whirlpool Air Conditioner Screw
22Seal, Cabinet Side (2)
23Seal, Top Cover
