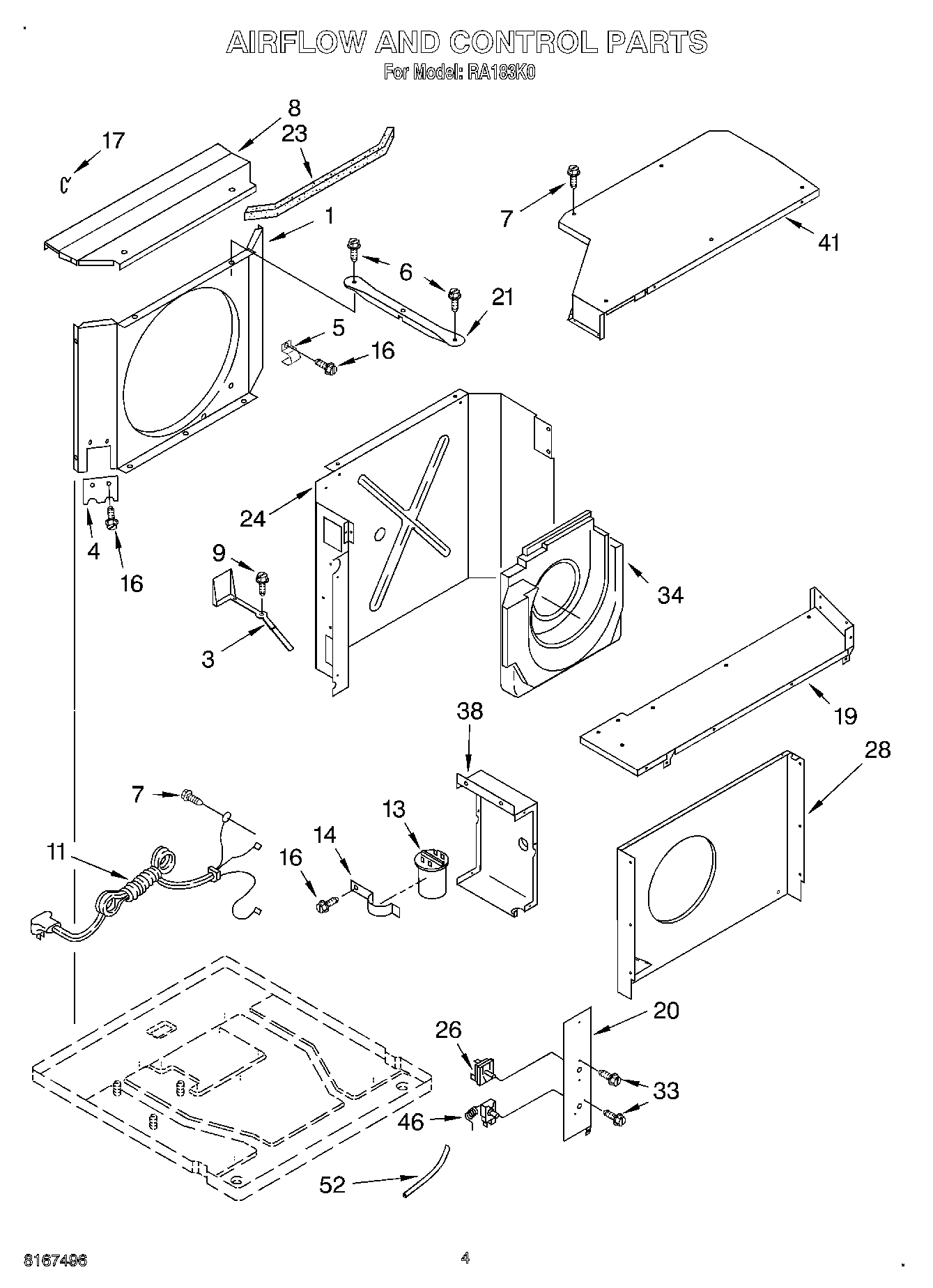

RA183K0 03 – AIRFLOW AND CONTROLadmin2025-04-26T12:48:37+00:00RA183K0 03 – AIRFLOW AND CONTROL
Products
| Position | Product |
|---|
| 1 | Shroud, Condenser |
| 3 | Door, Exhaust |
| 4 | Clip, Wet Loop |
| 5 | Clip, Nylon |
| 6 | WP308685 Whirlpool Microwave Screw |
| 8 | Top, Condenser |
| 9 | Screw, 8-18 x .437 |
| 11 | Cord, Appliance |
| 13 | Capacitor |
| 14 | Bracket, Capacitor |
| 16 | WP489069 Whirlpool Compactor Screw |
| 17 | Clip, Shroud (2) |
| 19 | Top, Evaporator Shroud |
| 20 | Panel, Control |
| 21 | Support, Unit (2) |
| 23 | Seal, Shroud |
| 24 | Dividing Wall |
| 26 | Switch, Rotary |
| 28 | Shroud Assembly, Evaporator |
| 33 | Screw, 6-32 x .175 |
| 34 | Housing, Air |
| 38 | Control Box (R.S.) |
| 41 | Cover, Top |
| 46 | Control, Temperature |
| 52 | Sleeve, Insulating |
