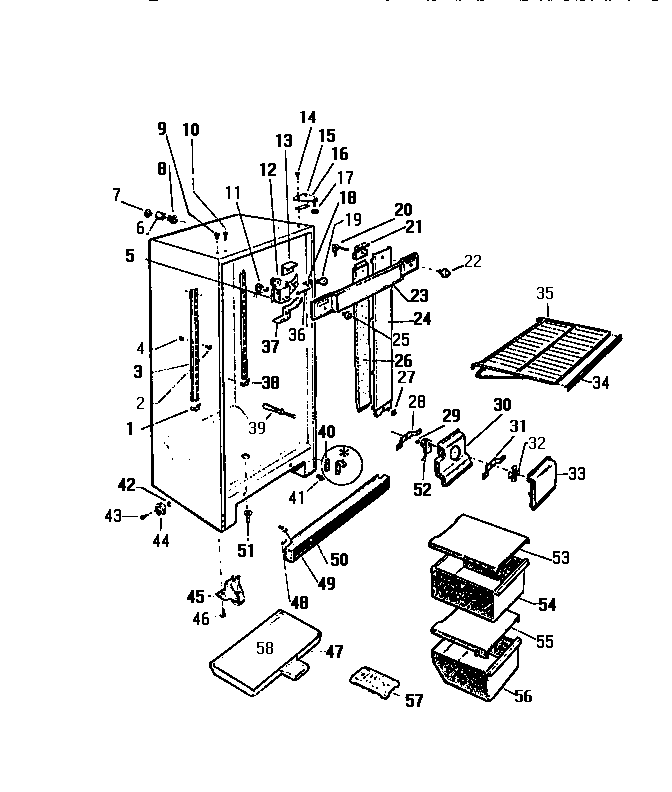

RA186GCD2 03 – CABINET, SHELVES, DIVIDER, FAN ASSE

Products

Position	Product
*26734	WCI G177781
*26732	BUTTON, PLUG, WATER INLET
*26731	BUTTON, PLUG, LINER (2)
*26733	WCI G181046
*26730	COVER, TOP HINGE, ALMOND
1	WCI G165344
2	5304455650 Frigidaire Refrigerator Screw
3	CHANNEL-RS & LS
4	218990001 Frigidaire Refrigerator Nut
5	BRACKET-CONT MTG
6	TUBE, INSULATION (2)
7	WCI G174733
8	WCI G174734
9	WCI G174747-11
10	WCI G162746-11
11	WCI G162667-07
12	215846604 Frigidaire Refrigerator Defrost Timer
13	LIGHT DEFLECTOR
14	241710601 Frigidaire Refrigerator Screw
15	BRACKET, TOP HINGE
16	WCI G183861
17	WASHER, NYLON
18	218906802 Frigidaire Light Lamp Socket
19	WCI Q63749
20	WCI G169650
21	WCI G169861
22	WCI G169950-05
23	WCI G169546-06
24	WCI G169836
25	WCI G162881-24
26	WCI G169841
27	WCI G171506
28	WCI G185303
29	BUTTON, LINER
30	WCI G189597
31	WCI G185302
32	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
33	WCI G169608
34	TRIM
35	WCI G180195-02
36	HOUSING-CAP TUBE
37	COVER-MTG BRKT
38	WCI G165343
39	WCI Q170001-01
40	SHIM, HINGE
41	WCI C149762
42	NUT, DAMPER MOUNTING
43	WCI G162809
44	ROLLER (2)
45	ROLLER ASSY (2)
46	BOLT, HOUSING TO FRONT RAIL (2)
47	DEFROST PAN
48	PLUG – LOWER GRILLE
49	WCI G162994
50	WCI G163080-03
51	DRAIN TUBE
52	5300158289 Frigidaire Evaporator Fan Motor
53	WCI G163915-01
54	WCI G179707-03
55	WCI G163916-01
56	WCI G179708-03
57	ICE TRAY
58	WCI G174047
59	BRACKET-LOWER HINGE
59B	WCI G142361
59A	SCREW – 1/4 X 1 (2)
59C	NUT, SPEED (2)
