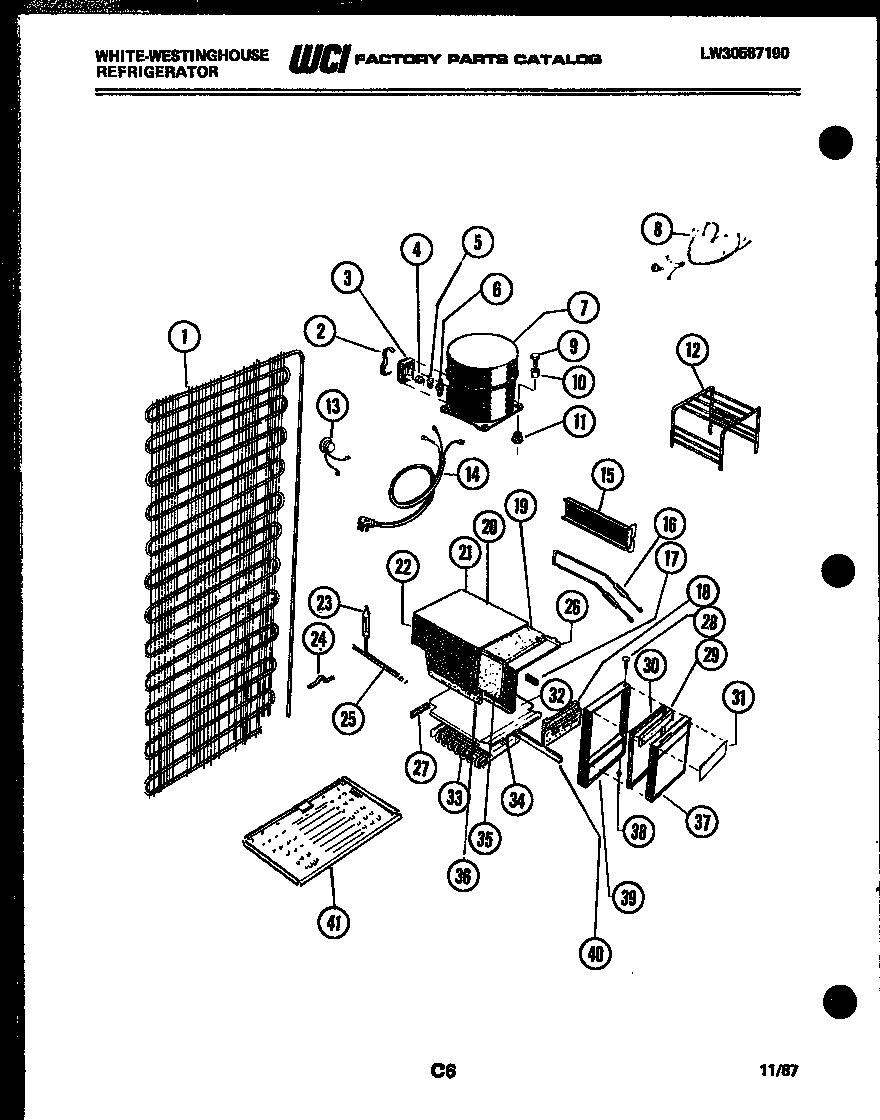

RA186GCF4 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI G189439
2	5303006412 Frigidaire Refrigerator Cover Mounting Strap
4	WCI G187544
5	WCI G182225-15
6	RETAINER, OVERLOAD
7	WCI 3916008
8	WCI R900976
9	SCREW – 1/4-20 (3) COMP. MTG.
10	SLEEVE COMP MTG (3)
11	218513300 Frigidaire Refrigerator Compressor Mount Grommet
12	WCI G165063
13	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
14	CORD, SERVICE
15	WCI G187142
16	WCI G187141
17	WCI G171003
18	WCI G169964
19	WCI G169831
20	WCI R900941
21	WCI G171082
22	WCI G171083
23	5303305677 Frigidaire Replacement Filter Dryer Filters
24	BRACKET-CONDENSER MOUNTING (4)
25	WCI G170983
26	HOUSING-INR LINER
27	WCI G170779
28	HINGE PIN – UPR
29	WCI G171694
30	WCI G169975
31	WCI G178055
32	WCI G169954
33A	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
33	WCI G189134
34	WCI G169589
35	WCI G169832
36	WCI G169833
37B	WCI G169965
37A	DOOR-FRZR INNER
37	WCI G169874-06
38	HINGE PIN – LWR
39	WCI G169891-05
40	GASKET-FRZR 3/8 (3)
41	DEFROST PLATE
