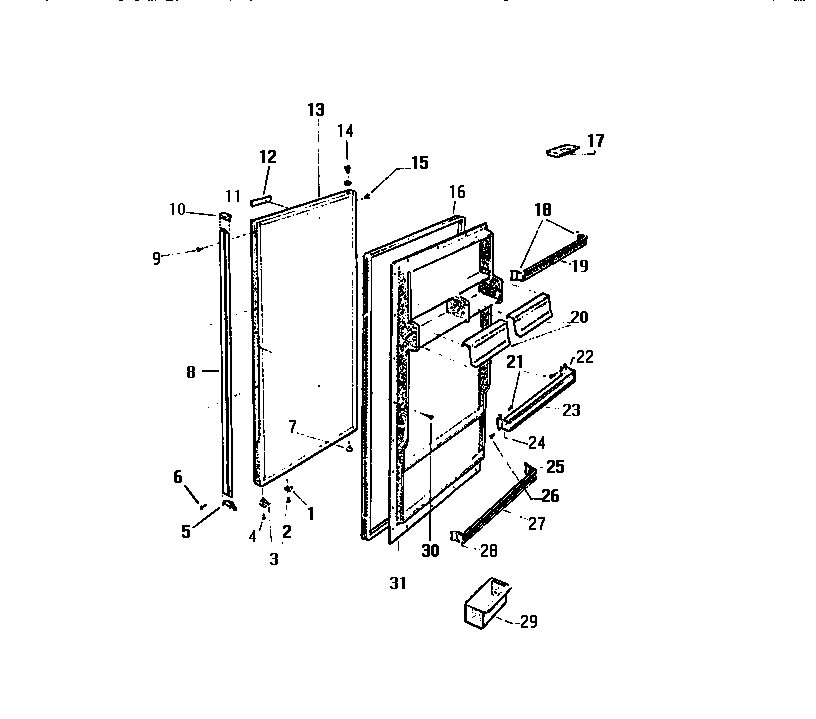

RA186GCH1 02 – DOOR

Products

Position	Product
*26723	WCI C09110
*26724	FIBERGLASS 34“X48“X11/2 “ TH
*26725	PLASTIC BAG
*26720	5300168328 Frigidaire Refrigerator Liner Repair Epoxy Tape
*26722	FIBERGLASS INSULATION 34“X48“X1/2“ TH
*26721	TAPE, DBLE SIDE
1	BUMPER-LIGHT SW.
2	WCI C505715
3	STOP, DOOR. PC & FC (2)
4	SCREW, STOP MOUNTING (2)
5A	TRIM, BTM
5	CAP
6	SCREW HANDLE MTG (8)
7	WCI G169332-01
8	WCI G17714102
9	WCI G185566
10A	CLIP
10	CAP
11	TRIM, TOP
12	WCI R304001
13	WCI Q172367-09
14	BEARING, HINGE (3)
15	WCI G162977-09
16	GASKET DOOR
17	5308000716 Frigidaire Refrigerator Dish
19	WCI C490079-14
20	WCI G162855-47
21	WCI G167115
22	END CAP RS (2)
23	WCI G164109
24	END CAP LS (2)
25	SUPPORT-RS (5)
26	WCI G101890
27	RACK-DOOR (2)
28	SUPPORT-LS (5)
29	WCI G173948-15
30	218843801 Frigidaire Refrigerator Screw
31	WCI G177398-01
