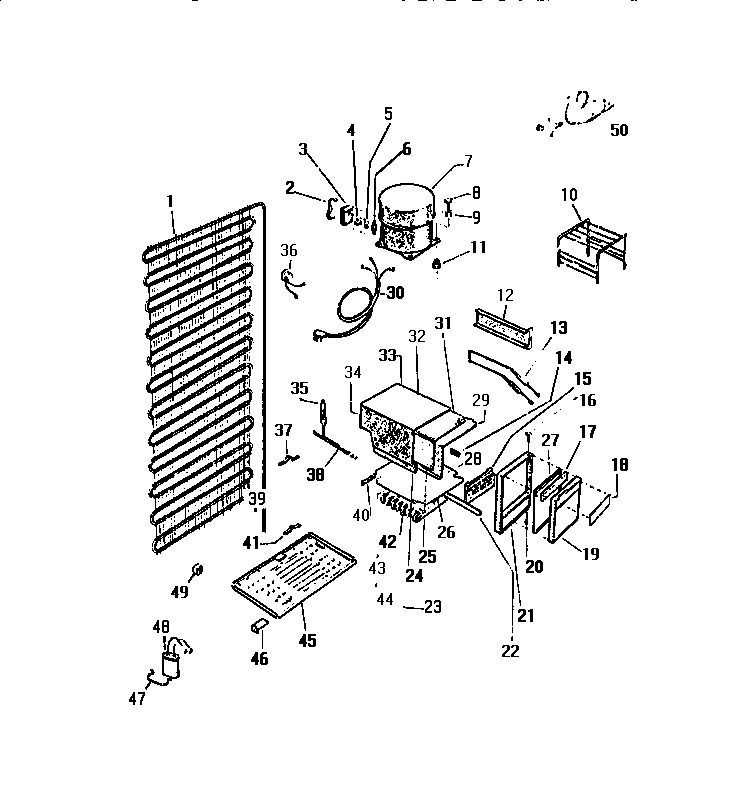

RA186GCW3 04 – COOLING SYSTEMS

Products

Position	Product
1	WCI G189739
4	WCI G188877
5	WCI G182225-18
7	WCI G190360
8	SCREW - 1/4-20 (3) COMP. MTG.
9	SLEEVE COMP MTG (3)
10	WCI G165063
11	218513300 Frigidaire Refrigerator Compressor Mount Grommet
12	WCI G187142
13	WCI G187141
14	WCI G171003
15	WCI R169964
16	HINGE PIN - UPR
17	WCI G171694
18	WCI G178055
19B	WCI G169965
19A	DOOR-FRZR INNER
19	WCI G169874-06
20	HINGE PIN - LWR
21	WCI G169891-05
22	WCI G170553-02
22	WCI G170553-04
24	WCI G169833
25	WCI G169832
26	WCI G169589
27	WCI G169975
28	WCI G169954
29	HOUSING-INR LINER
30	CORD, SERVICE
31	WCI G169831
32	WCI R900941
33	WCI G171082
34	WCI G171083
35	DRIER-REGULAR
35	WCI R900126
36	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
37	WCI G164633
38	WCI G170983
39	HEAT EXCHANGER REPAIR KIT
40	WCI G170779
41	5303006412 Frigidaire Refrigerator Cover Mounting Strap
42	WCI G169955
43	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
44A	WCI G170487
44	WCI G169969
45	DEFROST PLATE
46	WCI G170464
47	STRAP-CAPACITOR
48	WCI G1888851
49	SPACER, MOLDED
50	WCI R900976
