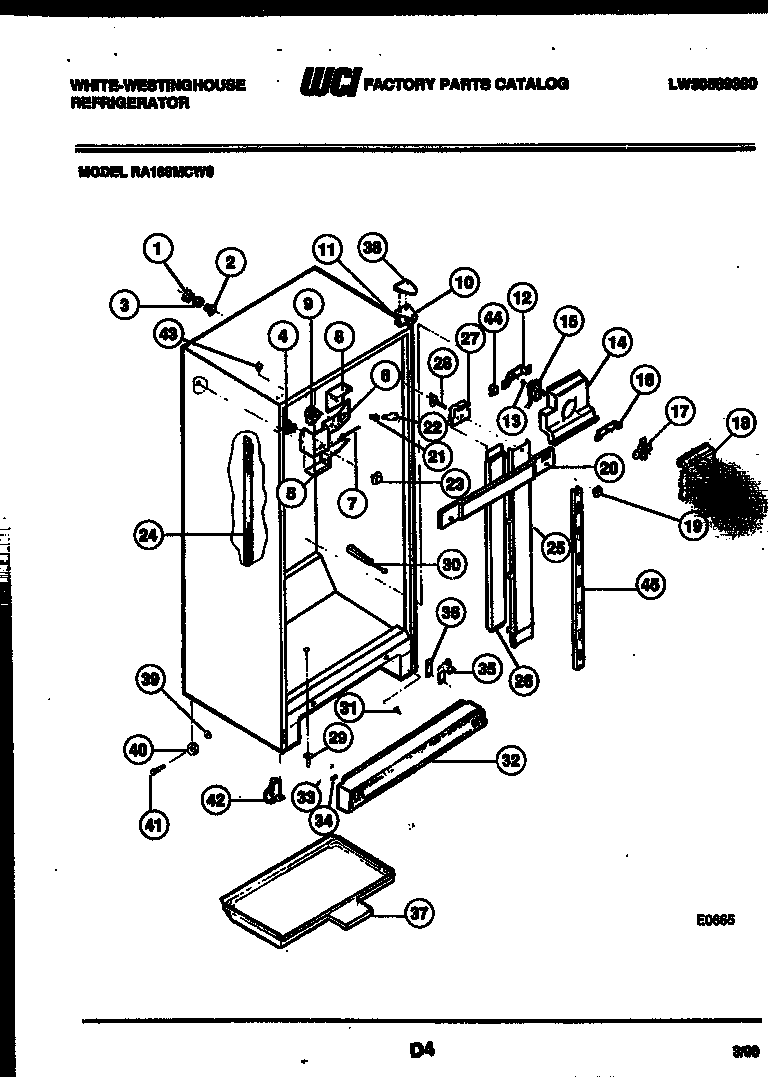

RA186MCF0 03 – CABINET PARTS

Products

PositionProduct
*26860TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*26860WCI 5308016568
*26860PLUG, BUTTON, CABINET LINER (NI)
*26860SCREW-MOUNTING (2) (NON-ILLUSTRATED)
*26860WCI 08008729
1WCI 5303001287
2WCI 5303001286
3TUBE-RUBBER
4AWCI 5303001260
4WCI 5308000068
5WCI 5308008706
6AWCI 08009649
6WCI 08008707
7WCI 08008708
8WCI 5308008709
9215846604 Frigidaire Refrigerator Defrost Timer
9A5304455649 Frigidaire Refrigerator Screw
10BRACKET-UPPER HINGE
10A241710601 Frigidaire Refrigerator Screw
10BWASHER, .34 X .62 X .05, NYLON
11SHIM – UPPER HINGE
12WCI 5303001227
13G187559 Frigidaire Refrigerator Bushing
14WCI 08008710
14A5304455650 Frigidaire Refrigerator Screw
155300158289 Frigidaire Evaporator Fan Motor
16WCI 5303001226
175308000010 Frigidaire Refrigerator Evaporator Fan Blade
18WCI 5308008711
19WCI G169950-03
20WCI 5303208898
20BWCI 5303208900
20AWCI 5303208899
21218906802 Frigidaire Light Lamp Socket
22316538904 Frigidaire Oven Lamp Light
23WCI G162881-24
24CHANNEL-SHELF MTG (2)
25WCI 08008718
26INSUL-LWR DUCT
27WCI 3015057
28AWCI 08008722
28WCI 08008721
29WCI 5308002739
30A5304455852 Frigidaire Refrigerator Screw
30WCI G170001-02
315303289051 Frigidaire Refrigerator Light Switch
32WCI 5303016726
33CLIP-GRILLE
34PLUG – LOWER GRILLE
35CWCI 5303001273
35BSCREW-HINGE MTG (2) (NON-ILLUSTRATED)
35HINGE-BOTTOM
35AWCI 08002738
36AWCI 5308000013
36SHIM-BTM HINGE (3)
36BWCI 5300077210
37WCI 5308008724
38COVER-UPPER HINGE, ALMOND
38COVER – HINGE-WHEAT
38COVER-HINGE-AVOCADO
38COVER-UPPER HINGE, WHITE
38WCI 5303001666
39Nut,push-on
40WCI 5308000265
41WCI 5308000266
42BSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
42ROLLER-FRONT (2)
42ASCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
43PLUG, COFFEE
44WCI 5308000107
44A218843801 Frigidaire Refrigerator Screw
45WCI 3018720
