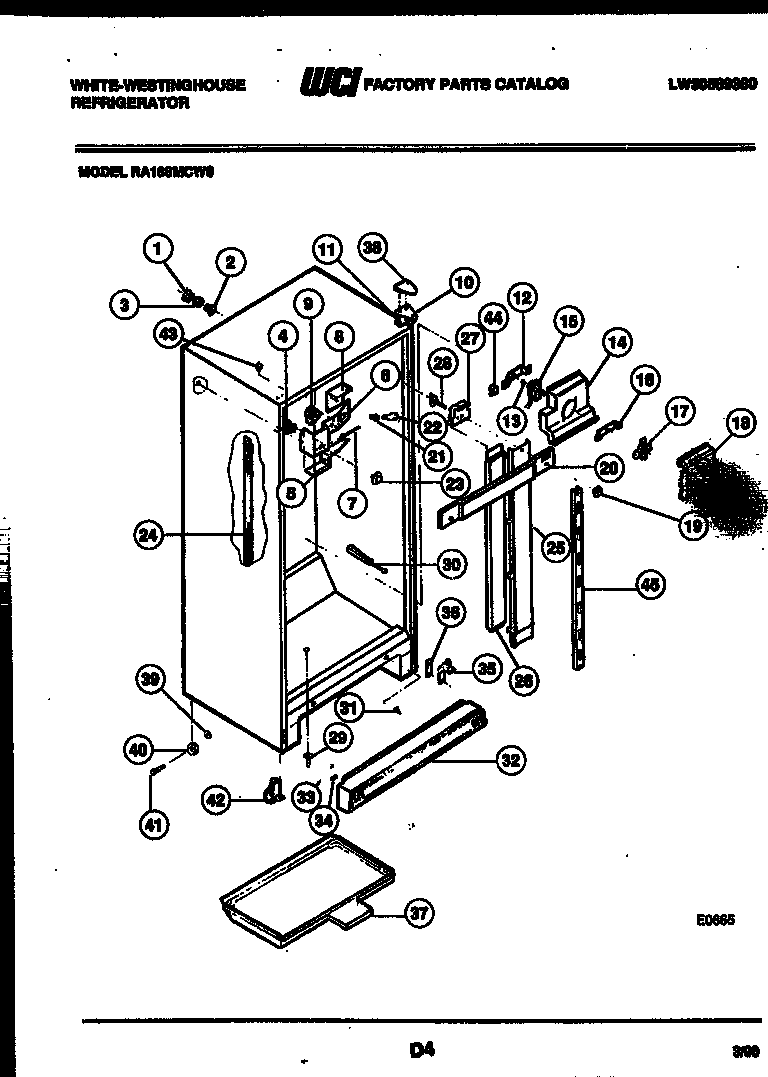

RA186MCV0 03 – CABINET PARTS

RA186MCV0 03 – CABINET PARTS

Written by

in

RA186MCV0 03 – CABINET PARTS

Products

PositionProduct
*26860TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*26860WCI 08008729
*26860WCI 5308016568
*26860SCREW-MOUNTING (2) (NON-ILLUSTRATED)
*26860PLUG, BUTTON, CABINET LINER (NI)
1WCI 5303001287
2WCI 5303001286
3TUBE-RUBBER
4WCI 5308000068
4AWCI 5303001260
5WCI 5308008706
6AWCI 08009649
6WCI 08008707
7WCI 08008708
8WCI 5308008709
9A5304455649 Frigidaire Refrigerator Screw
9215846604 Frigidaire Refrigerator Defrost Timer
10BWASHER, .34 X .62 X .05, NYLON
10A241710601 Frigidaire Refrigerator Screw
10BRACKET-UPPER HINGE
11SHIM – UPPER HINGE
12WCI 5303001227
13G187559 Frigidaire Refrigerator Bushing
14WCI 08008710
14A5304455650 Frigidaire Refrigerator Screw
155300158289 Frigidaire Evaporator Fan Motor
16WCI 5303001226
175308000010 Frigidaire Refrigerator Evaporator Fan Blade
18WCI 5308008711
19WCI G169950-03
20WCI 5303208898
20AWCI 5303208899
20BWCI 5303208900
21218906802 Frigidaire Light Lamp Socket
22316538904 Frigidaire Oven Lamp Light
23WCI G162881-24
24CHANNEL-SHELF MTG (2)
25WCI 08008718
26INSUL-LWR DUCT
27WCI 3015057
28WCI 08008721
28AWCI 08008722
29WCI 5308002739
30WCI G170001-02
30A5304455852 Frigidaire Refrigerator Screw
315303289051 Frigidaire Refrigerator Light Switch
32WCI 5303016726
33CLIP-GRILLE
34PLUG – LOWER GRILLE
35AWCI 08002738
35HINGE-BOTTOM
35BSCREW-HINGE MTG (2) (NON-ILLUSTRATED)
35CWCI 5303001273
36SHIM-BTM HINGE (3)
36BWCI 5300077210
36AWCI 5308000013
37WCI 5308008724
38COVER-UPPER HINGE, ALMOND
38COVER-UPPER HINGE, WHITE
38COVER-HINGE-AVOCADO
38WCI 5303001666
38COVER – HINGE-WHEAT
39Nut,push-on
40WCI 5308000265
41WCI 5308000266
42ASCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
42BSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
42ROLLER-FRONT (2)
43BUTTON-HINGE-AVOCADO
44A218843801 Frigidaire Refrigerator Screw
44WCI 5308000107
45WCI 3018720
