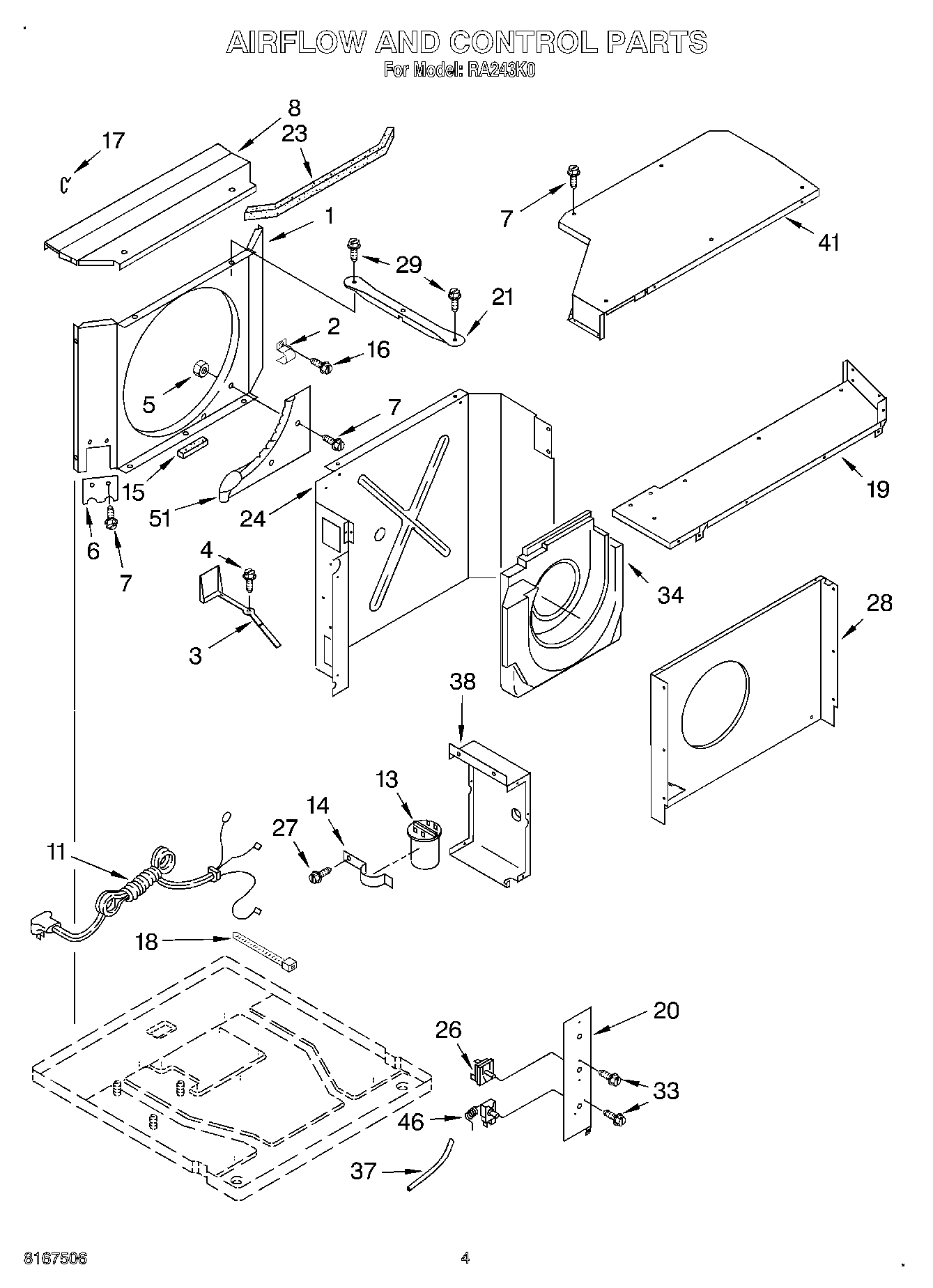

RA243K0 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
2	Clip, Wet Loop
3	Door, Exhaust
4	Screw, 8-18 x .437
5	WP488130 Whirlpool Air Conditioner Nut
6	Clip, Nylon
8	Top, Condenser
11	Cable, Appliance
13	Capacitor
14	Bracket, Capacitor
15	Seal, Condensate Cup
17	Clip, Shroud (2)
18	WPW10339879 Whirlpool Wire Tie
19	Top, Evaporator Shroud
20	Panel, Control
21	Support, Unit (2)
23	Seal, Shroud
24	Dividing Wall
26	Switch, Rotary
27	WP489069 Whirlpool Compactor Screw
28	Shroud Assembly, Evaporator
29	WP308685 Whirlpool Microwave Screw
33	Screw, 6-32 x .175
34	Housing, Air
37	Sleeve, Insulating
38	Control Box (R.S.)
41	Cover, Top
46	Control, Temperature
51	Cup, Condensate
