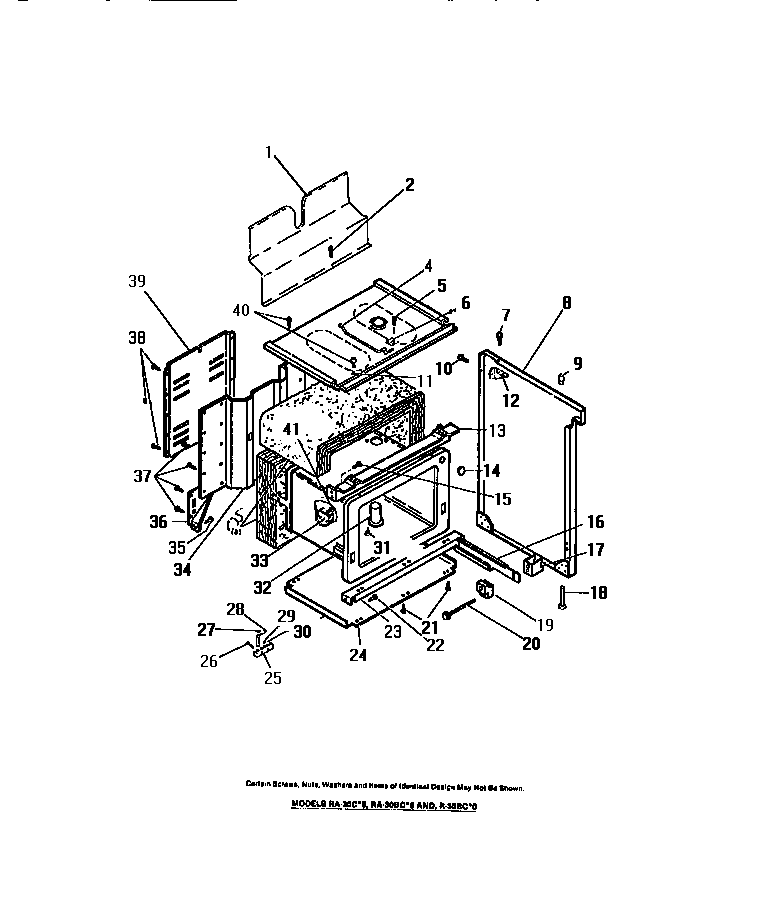

RA30BCL0 11 – OVEN LINER, SIDE PANELS

RA30BCL0 11 – OVEN LINER, SIDE PANELS

Written by

in

RA30BCL0 11 – OVEN LINER, SIDE PANELS

Products

Position	Product
*45960	WCI 8012542
1	WCI 8012550
4	WCI 8003079
6	WCI 8003316
7	SCREWS (2)
8	PANEL, RH SIDE, ALMOND
8A	PANEL, LH SIDE, ALMOND
9	BUMPERS (4)
11	WASHERS (2)
12	GUSSET (2)
13	WCI 8011092
14	WCI 8002852
16A	RAIL, LH
16	RAIL, RH
17	SPACERS (2)
18	SCREWS LEVELING (4)
19	GUIDES (2)
20	SCREWS (2)
23	WCI 8002872
24	WCI 8003238
25	BLOCK
26	SCREWS (2)
27	SCREW, GROUND WIRE
28	WCI 8003146
29	WCI 8003148
30	WASHER (6)
31	SCREWS (2)
32	WCI 8012541
33	WCI 8002854
33A	BRACKET
34	WCI 8014657
36	WCI 8015976
36A	WCI 8015977
39	WCI 8015750
40	SCREWS (2)
41	SCREW
