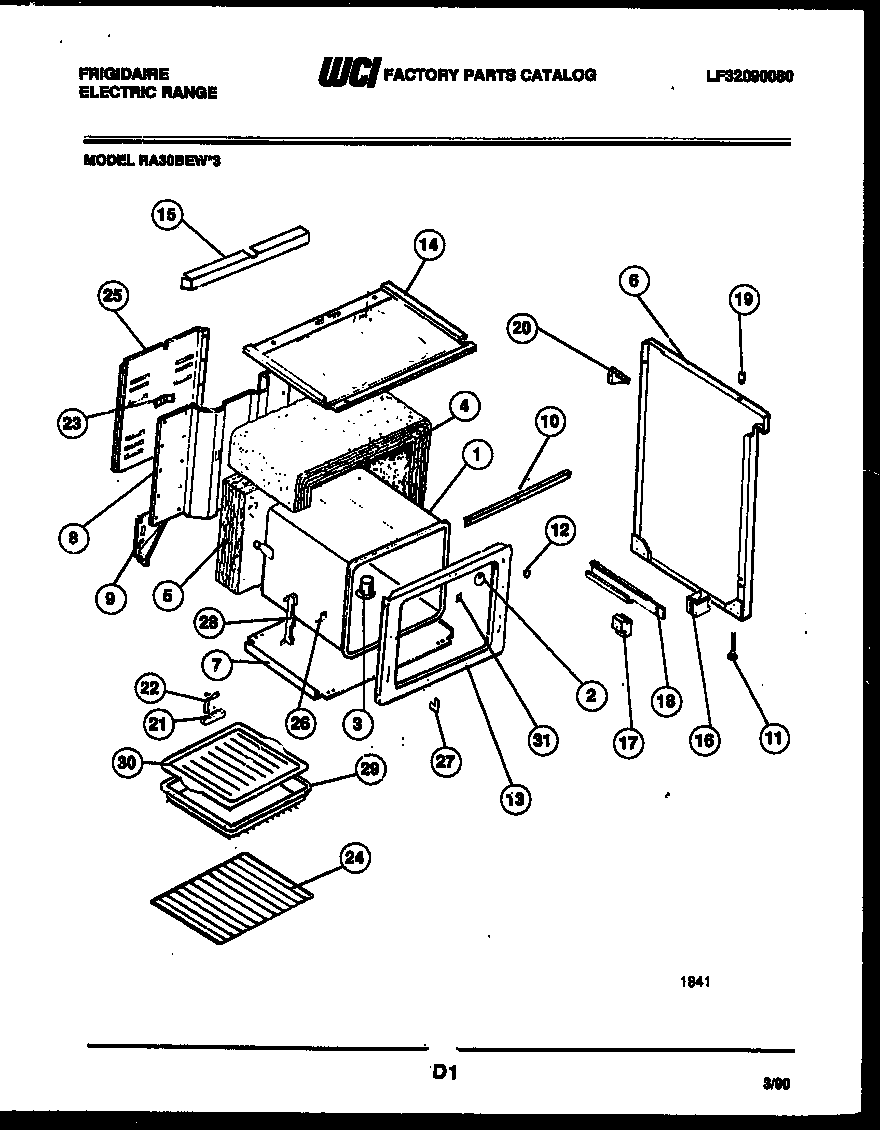

RA30BEL3 06 – BODY PARTS

Products

Position	Product
1	BODY-OVEN
2	WCI 3017576
3	WCI 08012541
4	INSULATION – OVEN WRAP
5	INSULATION
6	SIDE PANEL LH-ALMD
6	SIDE PANEL RH-ALMD
7	WCI 3206275
8	PANEL-BACK
9A	WCI 3017482
9	WCI 3017481
10	WCI 5303207391
11	LEG, LEVELLER (4)
12	BUTTON-PLUG
13	WCI 5303207446
14	WCI K005025704
15	WCI 3205755
16	SPACER, DRAWER RAIL (2)
17	GUIDE-DRAWER FRNT (2)
18	WCI 5308015746
18A	RAIL, DRAWER LH
19	BUMPER, COOKTOP (4)
20	GUSSET – BKGRD (2)
21	5304409888 Frigidaire Oven Terminal Block with Hardware
22	STRAP-GROUND
23	WCI 3016281
24	316067902 Frigidaire Oven Rack
25B	ANTI-TIP KIT, (NON-ILLUSTRATED)
25A	WCI 5300009126
25	WIRE, COVER
26	WCI 3201632
27	WCI 3019063
28	WCI 3201631
29	WCI 3205539
30	GRILLE, BROILER
31	WCI 3203082
