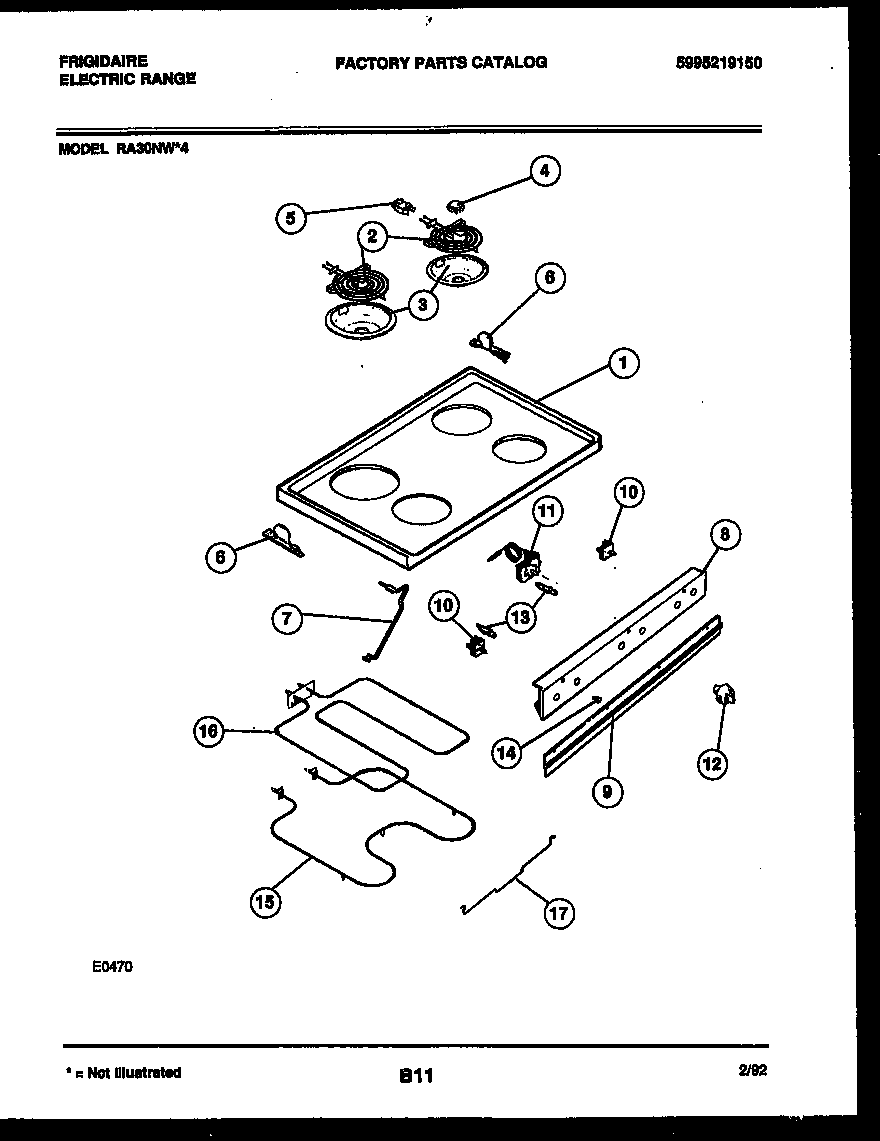

RA30NL4 04 – COOKTOP AND BROILER PARTS

RA30NL4 04 – COOKTOP AND BROILER PARTS

Written by

in

RA30NL4 04 – COOKTOP AND BROILER PARTS

Products

PositionProduct
1WCI 3051380
2A318372210 Frigidaire Oven Range 6" 1250W Surface Element
2316442300 Frigidaire Oven 2100W Coil Element 8
3316048413 Frigidaire Oven Range Chrome 8" Drip Bow
3A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
4WCI 5308067828
55303935058 Frigidaire Oven Burner Receptacle Kit
6ABRACKET-HINGE,MAIN TOP RH
6BRACKET-HINGE,MAIN TOP LH
7ROD – MAINTOP SUPT.
8WCI 5303212929
9WCI 3204623
10A5303935086 Frigidaire Oven Top Burner Switch Kit
10WCI 5303133767
11WCI 5303210266
12AWCI 5303212928
12WCI 5303212927
13WCI 5303210270
14WCI 30
15316075103 Frigidaire Oven Bake Element
165303051140 Frigidaire Broil Element
17316203400 Frigidaire Oven Support
