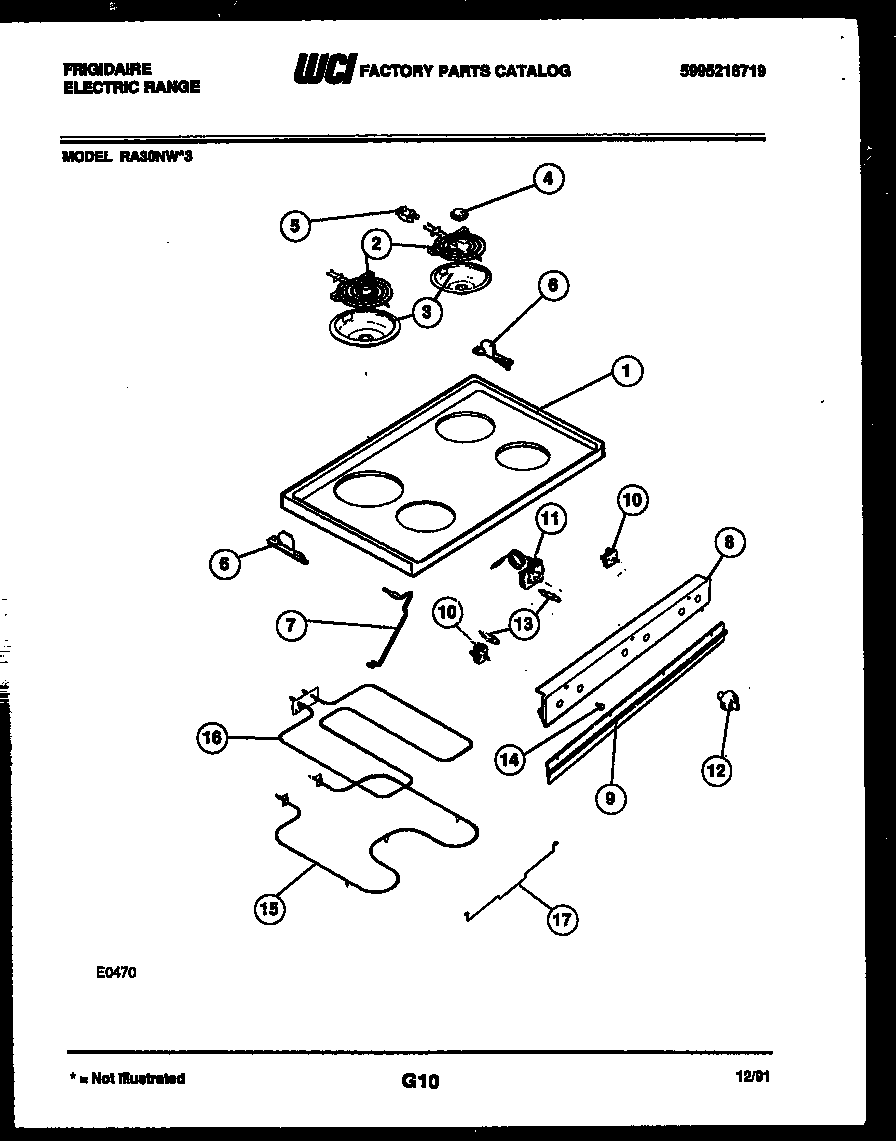

RA30NW3 04 – COOKTOP AND BROILER PARTS

RA30NW3 04 – COOKTOP AND BROILER PARTS

Written by

in

RA30NW3 04 – COOKTOP AND BROILER PARTS

Products

PositionProduct
1WCI 3051379
2A318372210 Frigidaire Oven Range 6" 1250W Surface Element
2316442300 Frigidaire Oven 2100W Coil Element 8
3316048413 Frigidaire Oven Range Chrome 8" Drip Bow
3A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
4WCI 5308067828
55303935058 Frigidaire Oven Burner Receptacle Kit
6ABRACKET-HINGE,MAIN TOP RH
6BRACKET-HINGE,MAIN TOP LH
7ROD – MAINTOP SUPT.
8WCI 5303212929
9WCI 3204623
10WCI 5303133767
10A5303935086 Frigidaire Oven Top Burner Switch Kit
11WCI 5303210266
12AWCI 5303212928
12WCI 5303212927
13WCI 5303210270
14JEWEL-IND
15316075103 Frigidaire Oven Bake Element
165303051140 Frigidaire Broil Element
17316203400 Frigidaire Oven Support
