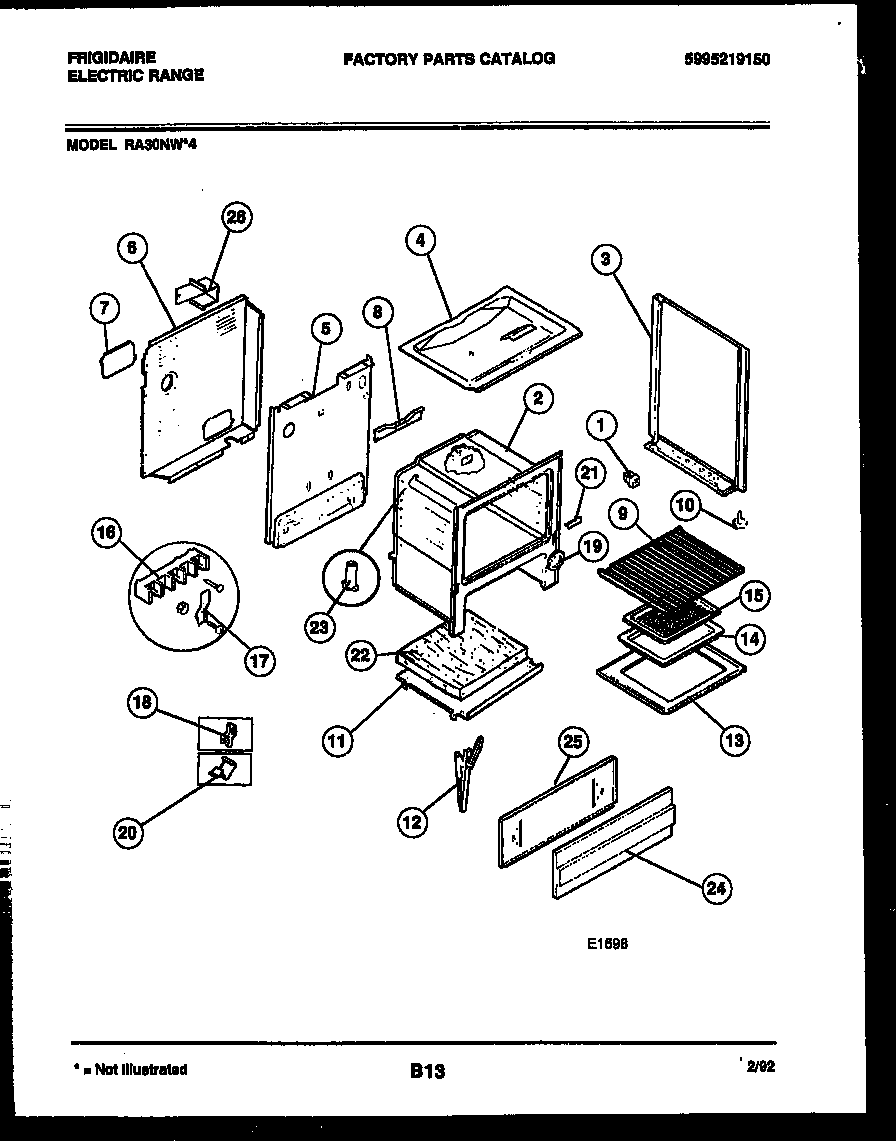

RA30NW4 05 – BODY PARTS

Products

Position	Product
*51957	3203550 Frigidaire Oven Plug
1	SPACER-BODYSIDE, (8)
3A	PNL-BODYSIDE RH-WHITE
3	PNL-BODYSIDE LH-WHITE
4	WCI 3017926
5	WCI 3203082
6	SHIELD-REAR WALL, LOWER
7	COVER-ACCESS
8	COVER-FLUE
9	316067902 Frigidaire Oven Rack
10	SCREW-LEVELING
11	SHIELD, OVEN BOTTOM
12	Hinge,oven door ,(2)
13	PANEL-OVEN BOTTOM
14A	WCI 19100210058
14	PAN-BROILER
15	WCI 5303131356
16	5304409888 Frigidaire Oven Terminal Block with Hardware
17	PLATE-GROUND STRAP
18	5303284616 Frigidaire Range Bulb Clip Thermostat
19	3051218 Frigidaire Oven Plate
20	WCI 3051367
21	COVER-OVEN FRONT
22	316403803 Frigidaire Insulation
23A	INSULATION, OVEN WRAPPER
23B	INSUL – OVEN BACK (NON-ILLUSTRATED)
23	WCI 5303283907
23C	SCREW-HINGE MTG. (6) (NON-ILLUSTRATED)
23D	316205500 Frigidaire Oven Nut
24	PNL – DRAWER (ALMD)
24	PNL – DRAWER (WHITE)
25	SHIELD-PNL
25A	WCI 3051387
25B	ANTI-TIP KIT (NOT ILLUSTRATED)
26	WCI 3203582
