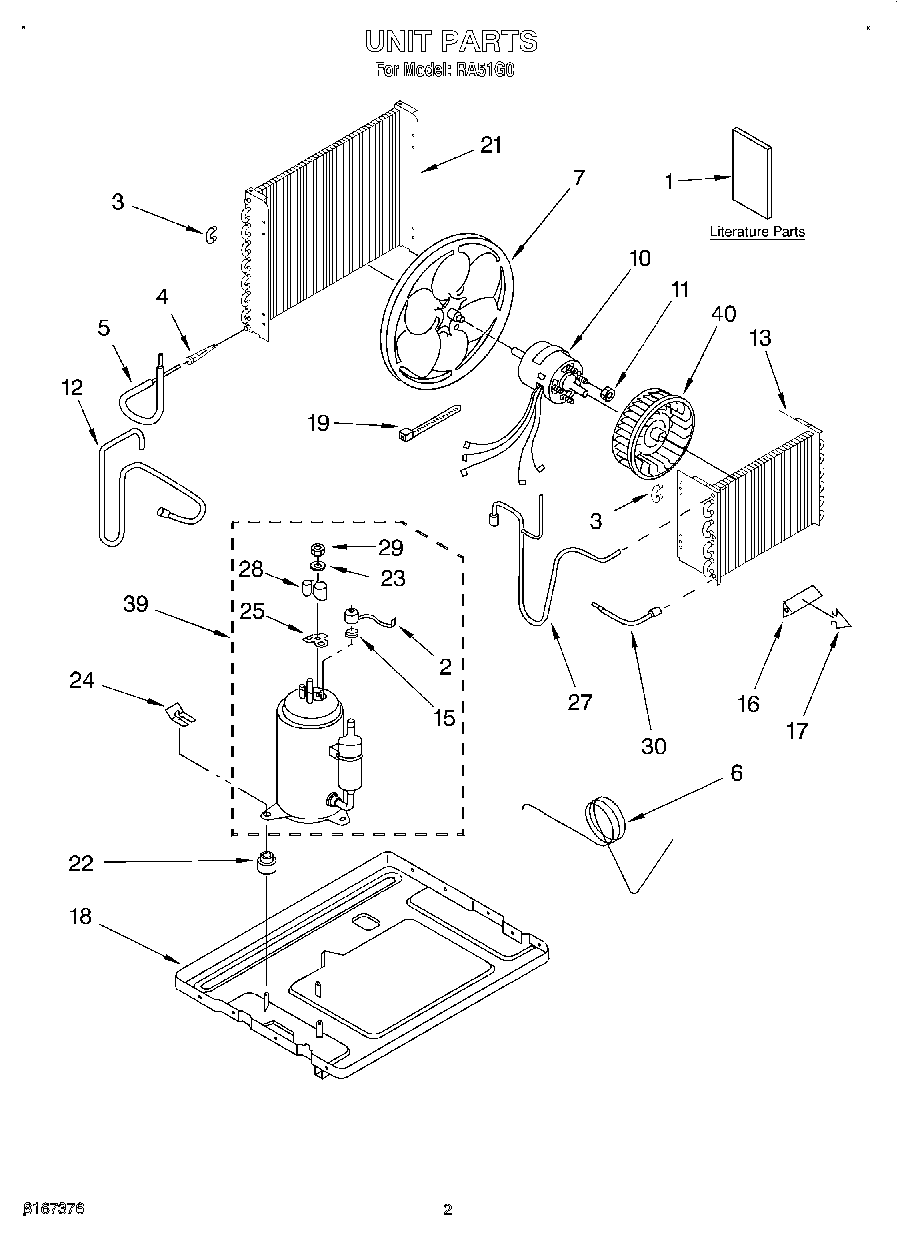

RA51G0 02 – UNIT, LITERATURE

Products

Position	Product
1	LITERATURE PARTS (Wiring Diagram)
1	LITERATURE PARTS (Use & Care Guide)
2	Overload
3	Bend, Return Evaporator (4) Condenser (4)
4	WP1162526 Whirlpool Air Conditioner Strainer
5	Tube, Outlet
6	Tube, Restrictor
7	Blade, Fan
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Tube, Discharge
13	Evaporator
15	Spring, Overload
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	WPW10339879 Whirlpool Wire Tie
21	Condenser
22	Grommet
23	Gasket, Nut
24	Clip, Compressor
25	WP950035 Whirlpool Cover Gasket
27	Tube, Suction
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Tube, Feeder (Restrictor)
39	Compressor Assembly
40	Wheel, Blower
