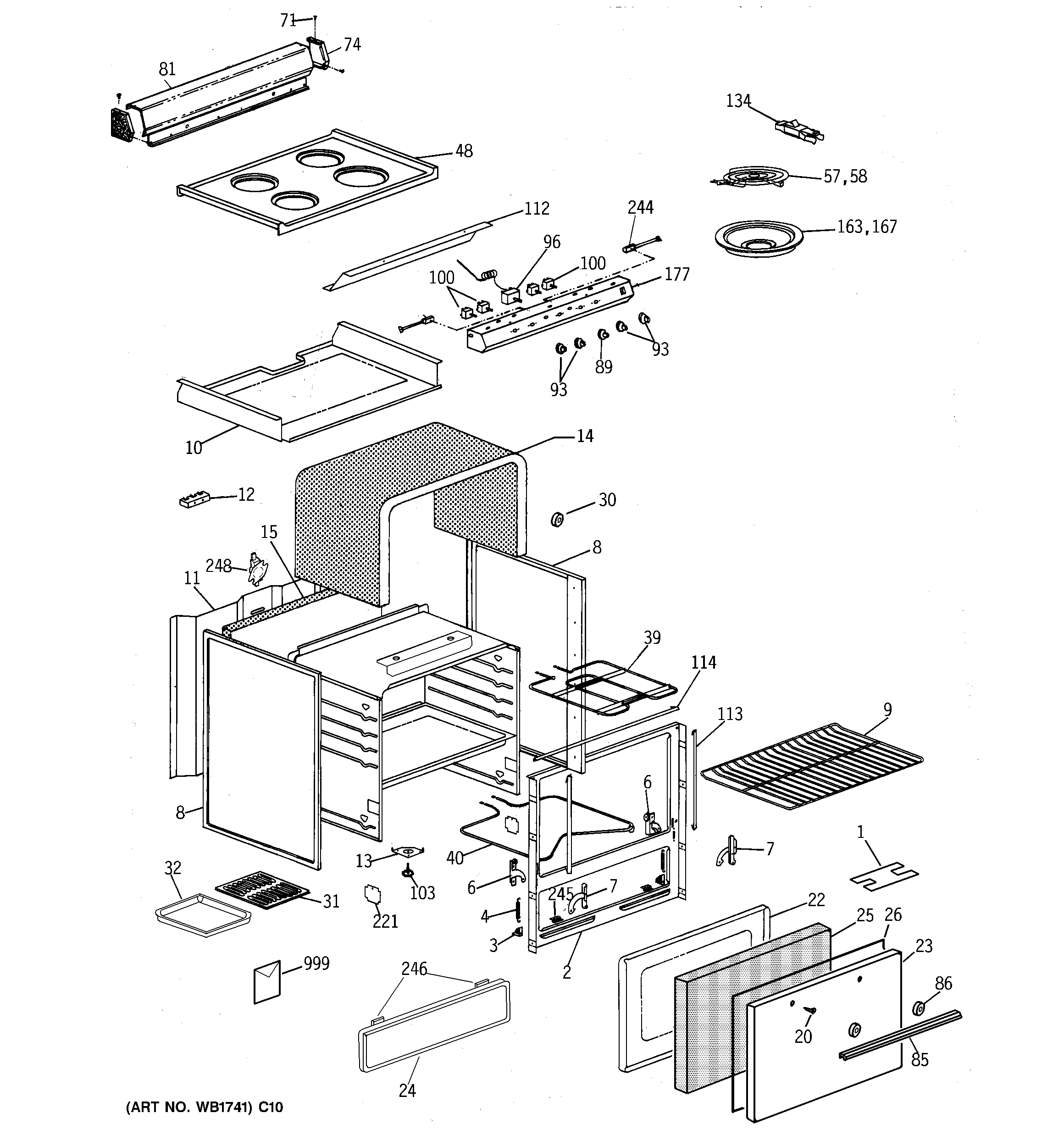

RA520W4 RANGE PARTS

Products

PositionProduct
1GEN WB06X0103
2GEN WB56X7004
3GEN WB02X7894
4GEN WB02X7893
6HINGE PLATE ASM.
7GEN WB10X5213
8SIDE, PANEL WH
8GEN WB63X10052
8SIDE, PANEL AD
9GEN WB48X5094
10GEN WB49X5472
11MAIN BACK
12GEN WB17X5112
13GEN WB02X8533
13GEN WB02X8534
13GEN WB02X8532
14GEN WB02X8538
15GEN WB02X8537
20GEN WB01X10272
22LINING, OVEN DOOR
23DOOR PANEL BISQUE
23GEN WB56X10574
23GEN WB56X10575
24GEN WB56X10619
24GEN WB56X7006
24GEN WB56X7010
25GEN WB55X10781
26GEN WB02X11116
30NYLON SPACER,TOP LOCATOR
31GEN WB48X5095
32GEN WB49X5468
39GEN WB44X5093
40WB44X5094 GE Oven Bake Element
48GEN WB62X10036
48GEN WB62X5370
48GEN WB62X5369
57WB30X254 GE Oven 6" Burner Unit 1250W 240V
58WB30X253 GE Oven Burner Surface Unit Element 8" 2100W Black Medallion
71GEN WB01X5790
74GEN WB07X7040
74GEN WB07X7041
81GEN WB07X10892
81GEN WB07X7400
81GEN WB07X7399
85GEN WB15X5185
86SPACER HANDLE
89GEN WB03X10262
93KNOB SURFACE UNIT 6"
96GEN WB24X10155
96GEN WB24X10142
100WB21X5349 GE Oven 8" 2100W Switch
100WB21X5348 GE Oven 6" 1400W Switch
103GEN WB01X5789
112GEN WB02X7896
113GEN WB02X7891
114GEN WB02X7892
134WB17T10006 GE Oven Burner Receptacle Block
163WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
167WB32X106 GE Oven 8" Chrome Drip Bowl
177GEN WB07X10894
177GEN WB07X10625
177GEN WB07X10893
221COVER, SPRING
244GEN WB02X7966
245GEN WB02X7898
246GEN WB02X7899
248GEN WB21X5262
999GEN WB01X10294
999GEN 49-8024
999GEN WB02X8198
