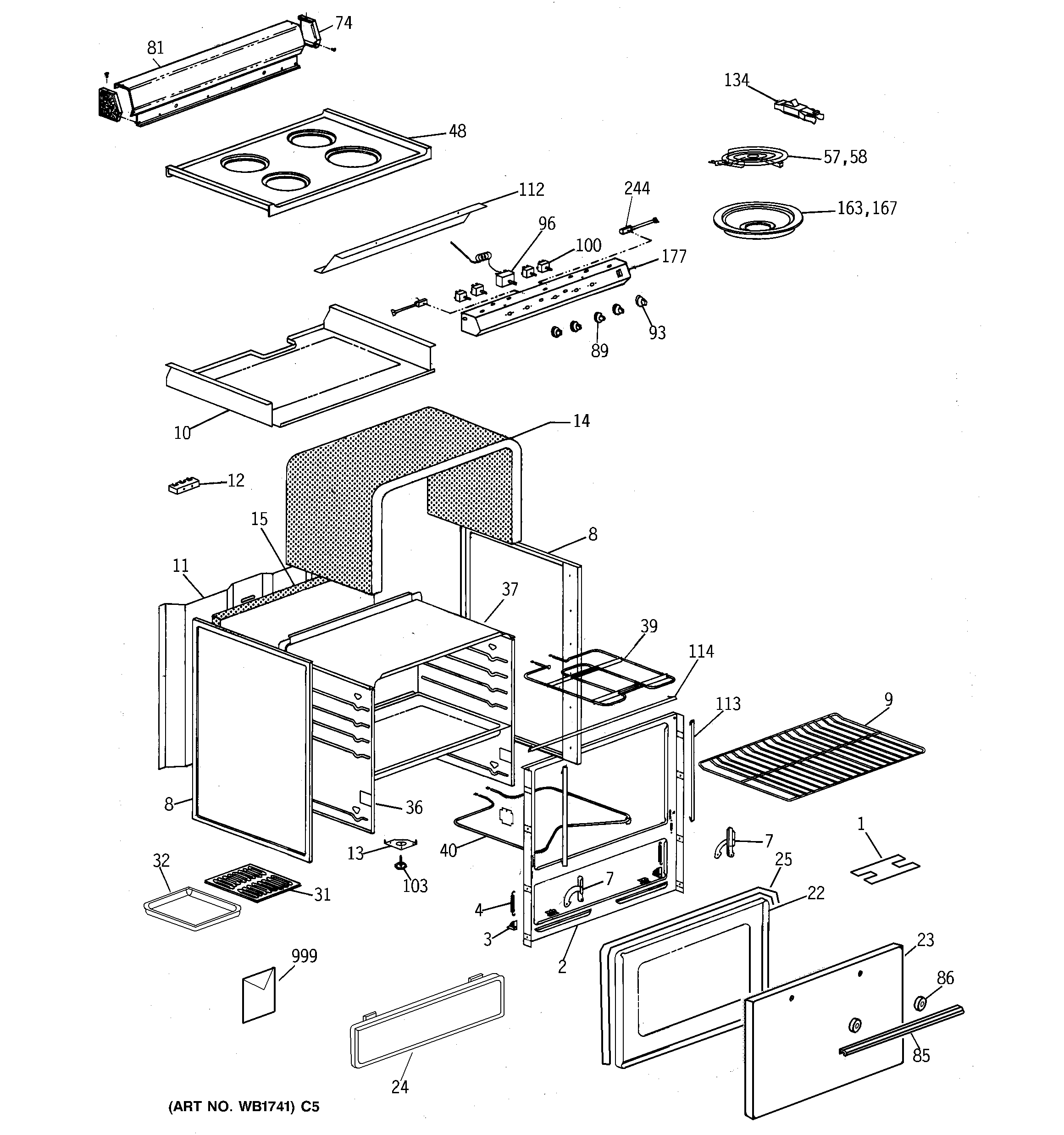

RA524W3 RANGE PARTS

Products

Position	Product
1	GEN WB02X8579
2	GEN WB56X7094
3	GEN WB02X7894
4	SPRING OVEN DOOR
7	GEN WB10X5221
7	GEN WB10X5220
8	SIDE, PANEL WH
8	SIDE, PANEL AD
9	GEN WB48X5112
10	GEN WB49X5587
11	GEN WB63X5246
12	GEN WB17X5112
13	GEN WB02X8534
13	GEN WB02X8533
13	GEN WB02X8532
14	GEN WB02X8581
15	GEN WB02X8587
22	LINING, OVEN DR
23	GEN WB56X7091
23	GEN WB56X7090
24	GEN WB56X10081
24	GEN WB56X10082
25	INSULATION OVEN DOOR
31	GEN WB48X5095
32	GEN WB49X5468
36	GEN WB53X5161
37	GEN WB53X5362
39	GEN WB44X5093
40	WB44X5094 GE Oven Bake Element
48	GEN WB62X5474
48	GEN WB62X5473
57	WB30X254 GE Oven 6" Burner Unit 1250W 240V
58	WB30X253 GE Oven Burner Surface Unit Element 8" 2100W Black Medallion
74	GEN WB07X7041
74	GEN WB07X7040
81	GEN WB07X7358
81	GEN WB07X7359
85	GEN WB15X5185
86	SPACER HANDLE
89	GEN WB03X5858
93	KNOB SURFACE UNIT 6"
96	GEN WB24X5358
100	WB21X5349 GE Oven 8" 2100W Switch
100	WB21X5348 GE Oven 6" 1400W Switch
103	GEN WB01X5789
112	GEN WB02X8580
113	GEN WB02X7891
114	GEN WB02X7892
134	WB17T10006 GE Oven Burner Receptacle Block
163	WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
167	WB32X106 GE Oven 8" Chrome Drip Bowl
177	CONTROL PANEL WH
177	GEN WB07X7356
244	GEN WB02X7966
999	GEN 49-8761
