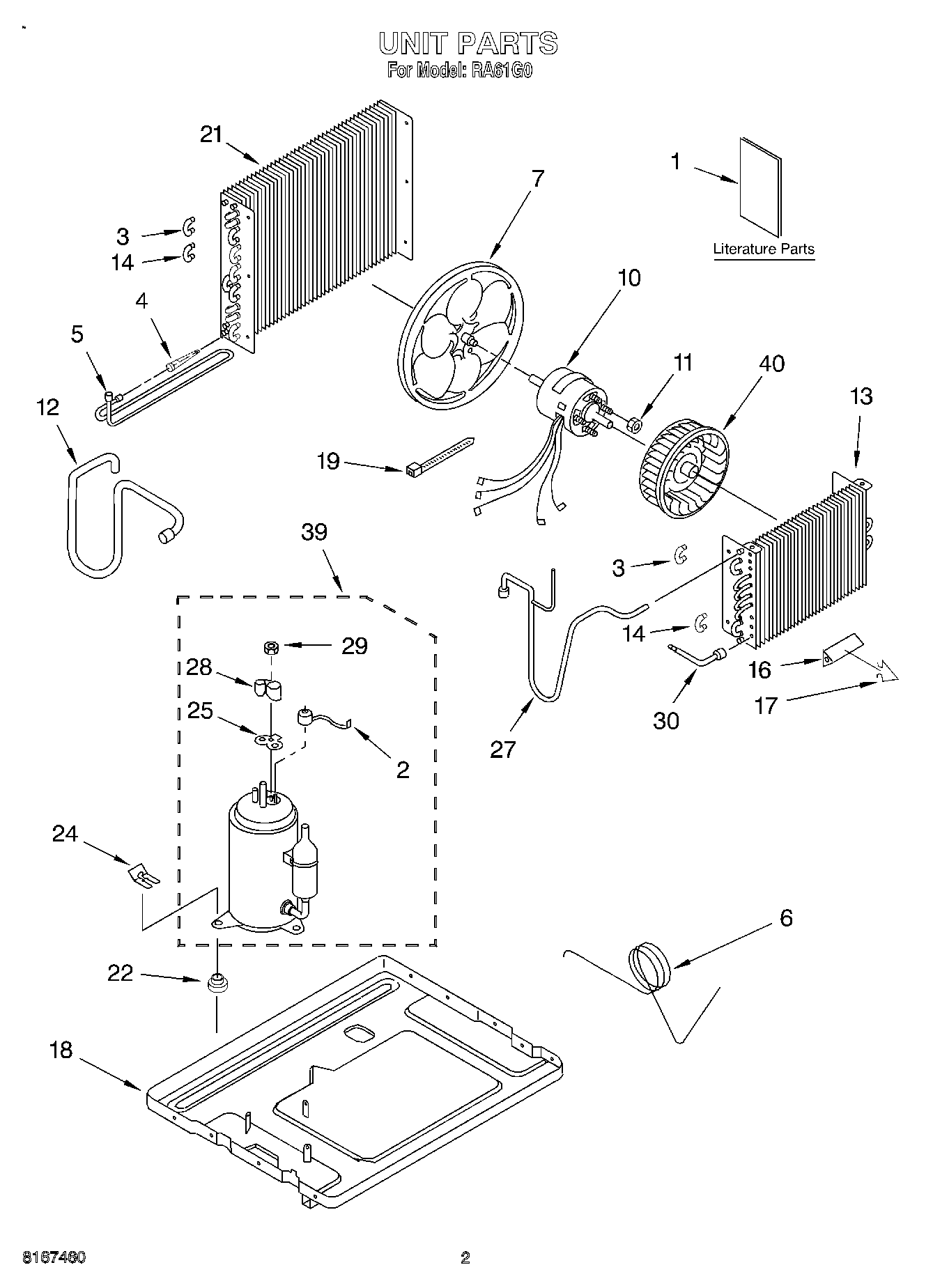

RA61G0 02 – UNIT, LITERATURE

Products

PositionProduct
1Energy Guide
1LITERATURE PARTS (Wiring Diagram)
1LITERATURE PARTS (Use & Care Guide)
2Overload
3Bend, Return Evaporator (4) Condenser (4)
4WP1162526 Whirlpool Air Conditioner Strainer
5Tube, Wet Loop
6Tube, Restrictor
7Blade, Fan
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12Tube, Discharge
13Evaporator
14Bend, Return Condenser (4)
16Anticipator, Temperature
17Clip, Anticipator
18Base
19WPW10339879 Whirlpool Wire Tie
21Condenser
22Grommet
24Clip, Compressor
25Gasket, Terminal Cover
27Tube, Suction
28Cover, Terminal
29Nut, Hex
30Tube, Feeder (Restrictor)
39Compressor Assembly
40Wheel, Blower
