RA61G0 04 – CABINET

RA61G0 04 – CABINET

Written by

in

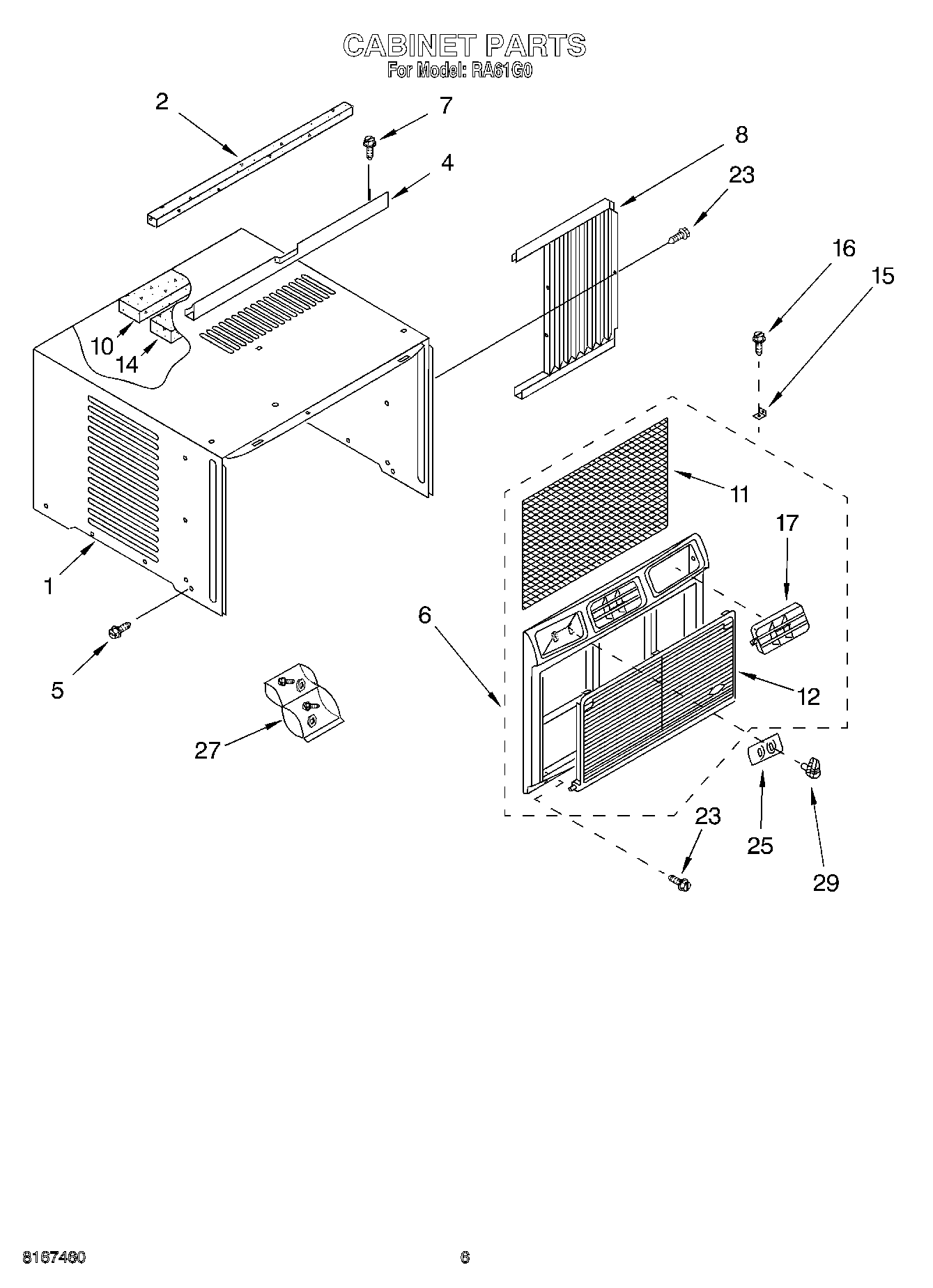

RA61G0 04 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
4Channel, Top
5WP489069 Whirlpool Compactor Screw
6Front, Cabinet Assembly
7WP308685 Whirlpool Microwave Screw
8Curtain (L.S.)
8Curtain (R.S.)
10Insulation, Top
11Filter
12Grille, Front
14Foam, Condenser
15Bracket
16Screw, Wood 8-15 x .750
17Louver, Assembly
23Screw, 8-18 x 3/8
25Escutcheon
27Bag, Accessory
29WP8031121 Whirlpool Air Conditioner Control Knob
