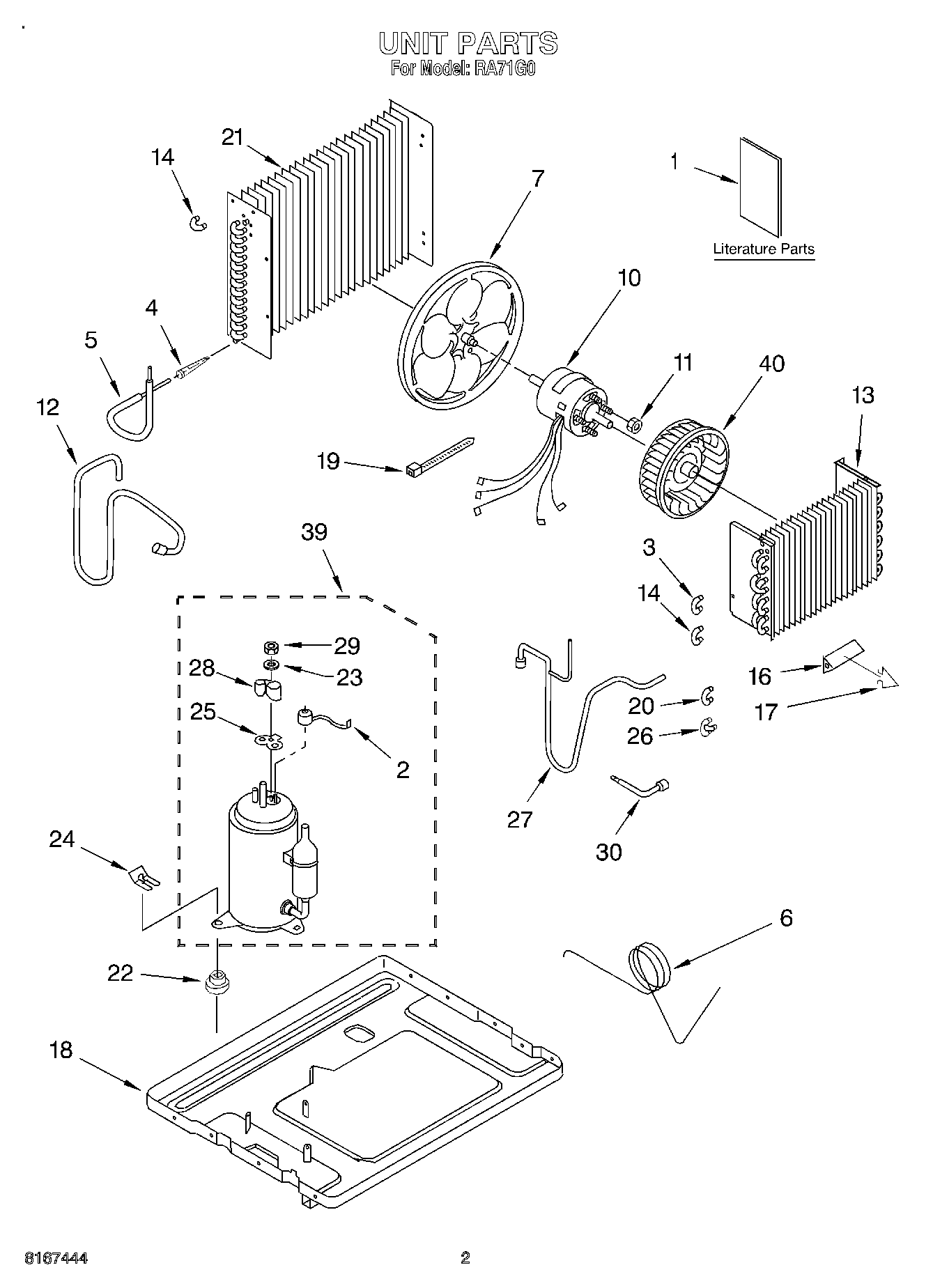

RA71G0 02 – UNIT, LITERATURE

Products

Position	Product
1	LITERATURE PARTS (Use & Care Guide)
1	LITERATURE PARTS (Wiring Diagram)
2	WP1161170 Whirlpool Air Conditioner Overload
3	Bend, Return Evaporator (4) Condenser (4)
4	WP1162526 Whirlpool Air Conditioner Strainer
5	Tube, Outlet
6	Tube, Restrictor
7	Blade, Fan
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Tube, Discharge
13	Evaporator
14	Bend, Return Condenser (4)
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	WPW10339879 Whirlpool Wire Tie
20	Bend, Return (5)
21	Condenser
22	Grommet
23	Gasket, Nut
24	Clip, Compressor
25	WP950035 Whirlpool Cover Gasket
26	Return Bend, Three Way Evaporator (2)
27	Tube, Suction
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Tube, Feeder (Restrictor)
39	Compressor
40	Wheel, Blower
