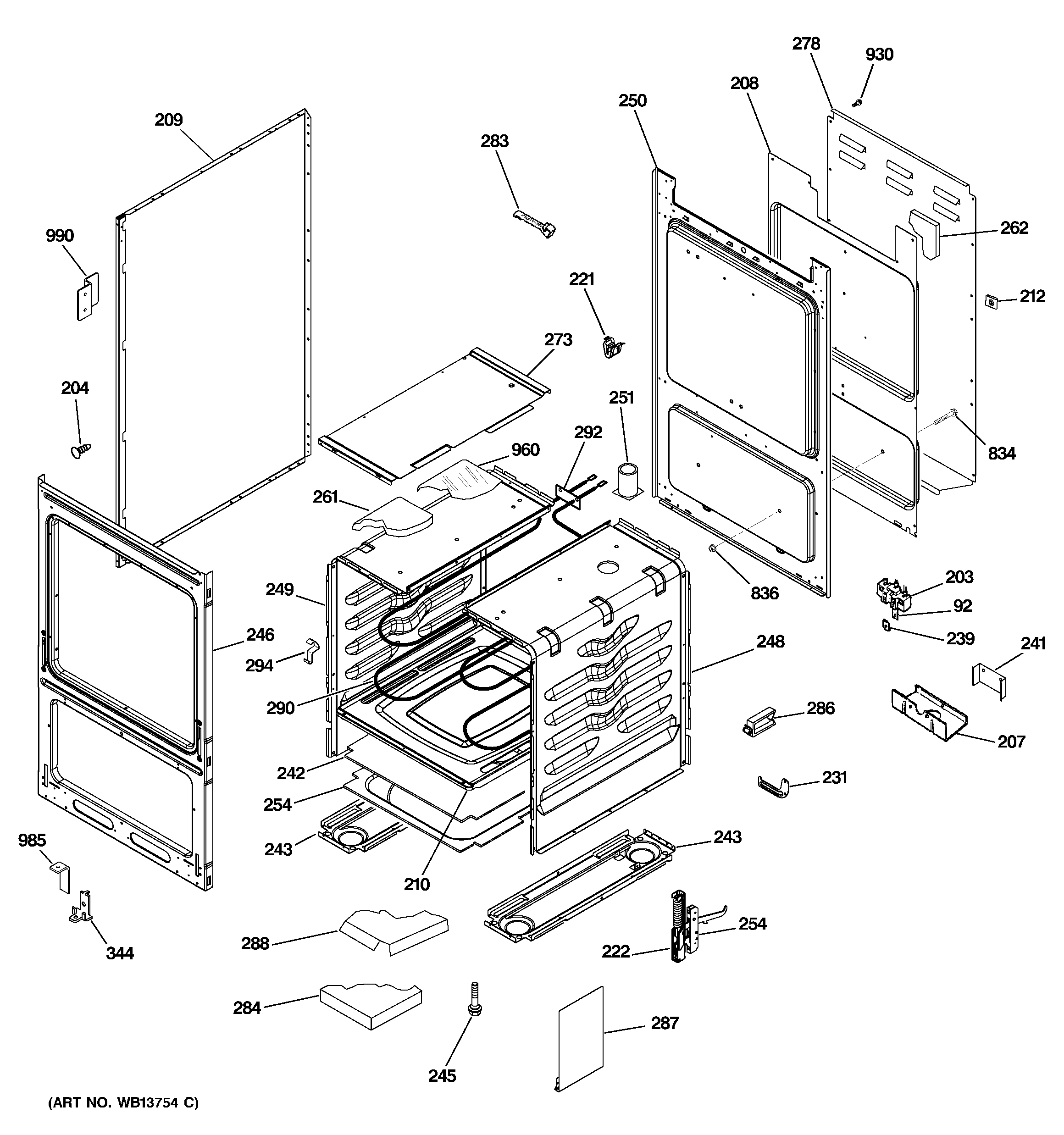

RA720K1CT BODY PARTS

RA720K1CT BODY PARTS

Written by

in

RA720K1CT BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
203WB17T10011 GE Oven Terminal Block
204WB1K5062 GE Oven Screw
204WB1K84 GE Oven Screw and
207WB02K10029 GE Oven Mounting Terminal Bracket
208GEN WB63K10082
208GEN WB63K10069
209GEN WB63K10072
209WB63K10080 GE Oven Side Panel
210WB63K10073 GE Oven Bottom
210WB63K10084 GE Oven Bottom
212WB01K10093 GE Oven Speednut
221WB02K10073 GE Oven Clip Capillary
222WB10K10004 GE Oven Door Hinge Assembly
231WB2K20 GE Oven Bracket Assembly
231WB02K10124 GE Oven Anti-Tip Arm
239PLATE GROUND
241GEN WB63K10104
242GEN WB63K10085
242GEN WB63K10071
243BASE SUPPORT
245WB02K10126 GE Oven Level Screw
246GEN WB63K10070
246GEN WB63K10083
248WB63K10081 GE Oven Side
248WB63K10079 GE Oven Side Assembly
249WB63K10075 GE Oven Side Assembly
249WB63K10076 GE Oven Side
250WB63K10068 GE Oven Back Assembly
250GEN WB38K10014
251GEN WB04K10002
251WB38K10013 GE Vent Tube
254WB63K10086 GE Base Support
254GEN WB63K10077
254WB10K10003 GE Oven Hinge Receptacle
261WB35K10061 GE Oven Wrap Insulation
261GEN WB35K10070
262GEN WB35K10075
262GEN WB35K10066
273GEN WB53K10022
273GEN WB53K10021
273GEN WB53K10023
273TOP GUARD INSULATION
278GEN WB34K10078
278COVER RANGE BACK
283WB02X21679 GE Oven Wire Clip
284GEN WB35K10064
284GEN WB35K10073
286GEN WB02X7066
287GEN WB34K10076
288GEN WB35K10072
288GEN WB35K10063
290WB44K10019 GE Oven Bake Heater
292WB44K10028 GE Oven Broil Heater Assembly
294WB2X9719 GE Oven Support Bracket Clip
834WB01K10050 GE Hex Screw 1/4-20 X 2 3/16"
836GEN WB01K10051
930WB01K10052 GE Screw
960GEN WB35K10076
960GEN WB35K10067
985WB02K10130 GE Oven Door Insulation Support
990GEN WB02K10131
